Name: EMS CX3 measure module for 1 three-phase electrical line up to 6 300A with open flexible Rogowski current transformers.
SKU: 414927

EMS CX3 measure module for 1 three-phase electrical line up to 6 300A with open flexible Rogowski current transformers.

EMS CX³ LEGRAND

EMS CX3 measure module for 1 three-phase electrical line up to 6 300A with open flexible Rogowski current transformers.

REF. 414927 EAN. 3414971437760

Compare You can only compare 4 products, you must remove 1 to add this one

Complies with IEC / EN 61557 - 12 (standard on measuring product characteristics) and IEC / EN 61131 - 2 (programmable logic controllers)
Can be mounted on aluminium or copper bars in either, vertical or horizontal position.
Compact measure module : 17,8 mm wide module.

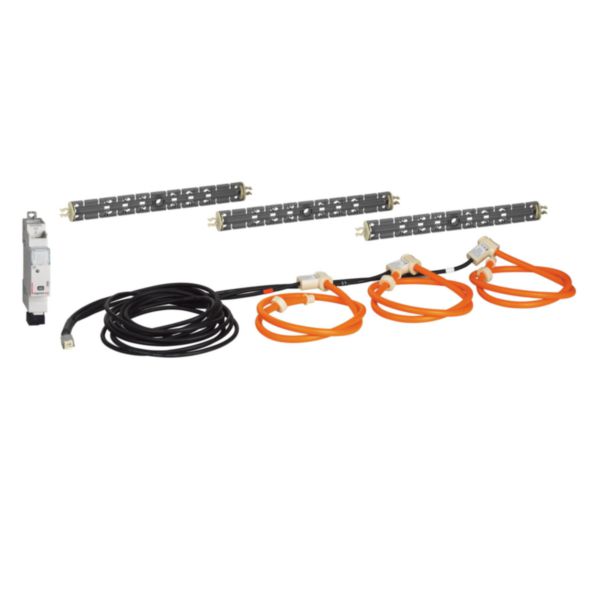

Measure module delivered with current transformers and plastic supports (1 per transformer) to facilitate the centering of the cores on electrical bars.
To be connected to the EMS CX3 system through communicating rails our patch cords.

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	No
Bus system LON	No
Bus system Powernet	No
Other bus systems	Other
Radio frequency bidirectional	No
Model	Direct/transformer
Connection type	Direct , Cable
Reactive power	Yes
S0 impulse interface	None
Tariff switch	No
Accuracy class	1
Width	17.8 mm
Height	95.5 mm
Depth	67.6 mm

degree of impact strength (IK)	Other
Degree of protection (IP)	IP40
Operating / setting temperature (Min-Max)	-25-70 °C
Storage temperature (Min-Max)	-40-70 °C
Voltage type	DC
Nominal voltage (Min-Max)	10.8-13.2 V
Terminal marking indication	Yes
Halogen free	Yes
Terminals capacity (Min-Max)	0.5-2.5 mm²
Label space/information surface	Yes
Fitted with USB plug	No
Mounting method	DIN rail
Addressable	Yes
Contains Batteries and/or Accumulator	No
Connected object	No

EMS CX3 measure module for 1 three-phase electrical line up to 6 300A with open flexible Rogowski current transformers.
