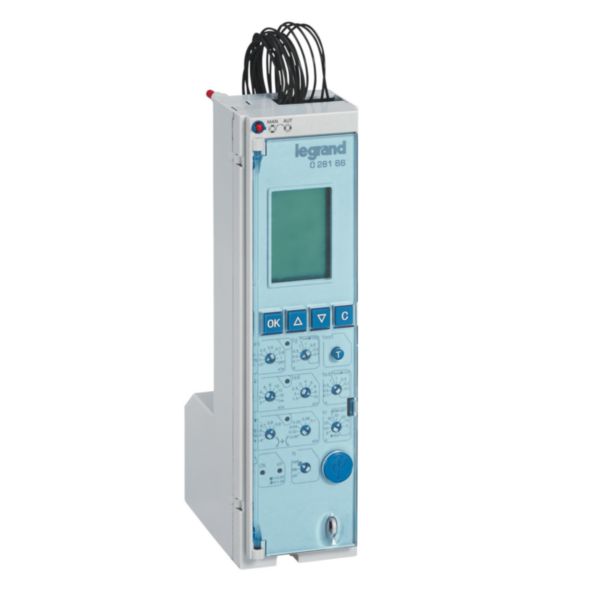

Name: Electronic protection unit MP4 LSIg - for DMX³ 1600 circuit breakers
SKU: 028166

Electronic protection unit MP4 LSIg - for DMX³ 1600 circuit breakers

LEGRAND

Electronic protection unit MP4 LSIg - for DMX³ 1600 circuit breakers

REF. 028166 EAN. 3414970767448

Compare You can only compare 4 products, you must remove 1 to add this one

DMX³ 1600 electronic protection units - DMX³ circuit breakers must be equipped with electronic protection units (to be ordered together for factory assembly) enabling very precise adjustments of the protection conditions, while maintaining total discrimination with downstream devices - Conform to IEC 60947 - 2
MP4 protection units with LCD screen - Integrated LCD screen for displaying electrical values, settings and log - Adjustment via selector switchesLSIg protection unit - Adjustment of : - Isd, tsd, Ir, tr, Ii, Ig and tg

Type of motor protection	Electronic release
Rated permanent current Iu	2500 A
Overload release current setting (Min-Max)	252-2500 A
Short-circuit release function	Undelayed
With ground fault protection function	Yes
Supply voltage AC 50 Hz (Min-Max)	230-230 V

Supply voltage AC 60 Hz (Min-Max)	230-230 V
Voltage type (operating voltage)	AC
Width	56 mm
Height	205 mm
Depth	98 mm
Contains Batteries and/or Accumulator	No
