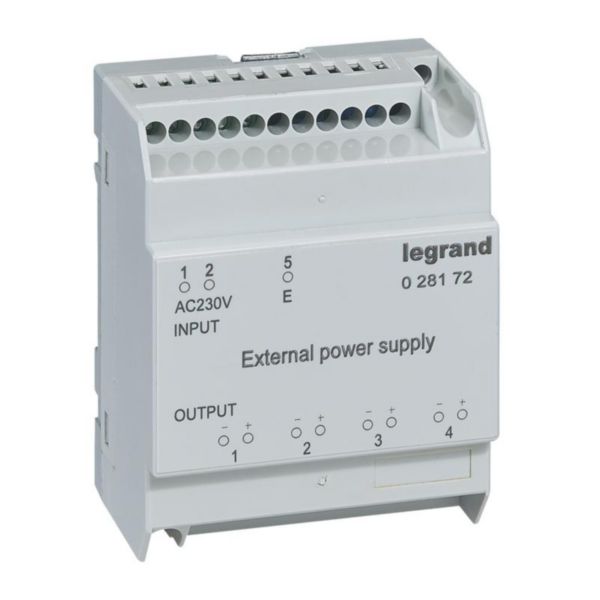

Name: Power supply - external 230 V AC - for DMX³ 1600 electronic protection units
SKU: 028172

Power supply - external 230 V AC - for DMX³ 1600 electronic protection units

LEGRAND

Power supply - external 230 V AC - for DMX³ 1600 electronic protection units

REF. 028172 EAN. 3414970767257

Compare You can only compare 4 products, you must remove 1 to add this one

DMX³ 1600 electronic protection units - DMX³ circuit breakers must be equipped with electronic protection units (to be ordered together for factory assembly) enabling very precise adjustments of the protection conditions, while maintaining total discrimination with downstream devices - Conform to IEC 60947 - 2
Accessories for electronic protection units - External auxiliary power supply (input 230 V AC)

Voltage type (supply voltage)	AC/DC
1st secondary output voltage (Min-Max)	24-24 V
Max. output current 1	1 A
Secondary voltage adjustable	No
Nominal value output voltage 1	24 V
Nominal value output current 1	1 A
Short-circuit-proof	Yes
Rated supply voltage AC 50 Hz (Min-Max)	220-250 V
Rated supply voltage AC 60 Hz (Min-Max)	220-250 V
Output voltage stabilized	No
Power consumption	25 VA
Stabilized	Yes
Type of electric connection	Screw connection
Suitable for rail mounting	Yes
Suitable for wall mounting	Yes
Suitable for distribution board	Yes

Width in number of modular spacings	4
Direct mounting possible	Yes
Width	72 mm
Height	90 mm
Depth	64 mm
Suitable for safety functions	Yes
SIL according to IEC 61508	None
Performance level according to EN ISO 13849-1	None
Degree of protection (IP)	IP30
Operating / setting temperature (Min-Max)	-10-50 °C
Frequency (Min-Max)	5-60 Hz
Electric supplying direction	By the top
Terminal marking indication	Yes
Halogen free	Yes
Label space/information surface	No

Power supply - external 230 V AC - for DMX³ 1600 electronic protection units
