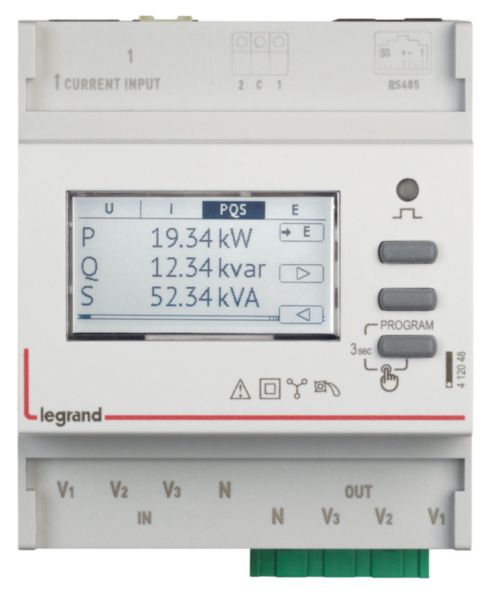

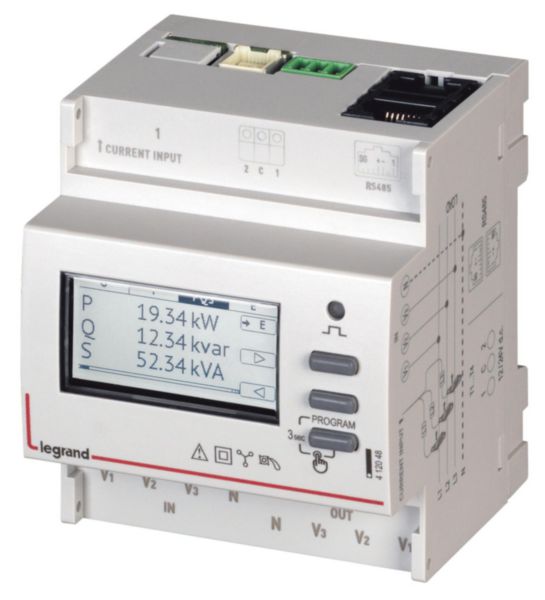

Name: Easy Connect Modular measuring Mutifunction 4DIN Module
SKU: 412048

Easy Connect Modular measuring Mutifunction 4DIN Module

Easy Connect LEGRAND

Easy Connect Modular measuring Mutifunction 4DIN Module

REF. 412048 EAN. 3414972126120

Compare You can only compare 4 products, you must remove 1 to add this one

Positive and negative active energy, phase voltages and currents. Three-phase system with or without neutral

Mounting method	DIN rail
Ampere meter	Yes
Reactive power meter	Yes
With rotational speed meter	No
Frequency meter	Yes
Pulse counter	No
Voltmeter	Yes
Effective power measurement device	Yes
Accuracy class active energy according to IEC 62053-22	Other
Accuracy class reactive energy according to IEC 62053-23	Other
Sampling frequency	5000 Hz
Number of voltage measurement inputs	3
Number of current measurement inputs	3
Voltage type (supply voltage)	AC
Supply voltage AC 50 Hz (Min-Max)	197-264 V
Supply voltage AC 60 Hz (Min-Max)	197-264 V
Measuring range for frequency (Min-Max)	45-65 Hz
Display	LCD
Remote display	No
Display resolution (horizontal)	256 px
Display resolution (vertical)	240 px
Number of analogue inputs	0
Number of analogue outputs	0
Number of digital inputs	2
Number of digital outputs	0
Number of Ethernet connections	0
Supporting protocol for IEC 61850 Ethernet	No

Supporting protocol for OPC UA PubSub	No
Supporting protocol for PROFIBUS	No
Supporting protocol for Modbus	Yes
Supporting protocol for PROFINET IO	No
Supporting protocol for other bus systems	No
With audit logging (audit log)	No
With firmware signature	No
With logging of security events (security event log)	No
With Role Based Access Control (RBAC)	No
Web server with HTTPS transfer protocol	No
Width	71.2 mm
Height	83 mm
Depth	66 mm
Degree of protection (IP), front side	Other
Built-in depth	49.2 mm
Degree of protection (IP)	IP54
Operating / setting temperature (Min-Max)	-25-55 °C
Storage temperature (Min-Max)	-25-70 °C
Voltage type	AC
Nominal voltage (Min-Max)	190-265 V
Frequency (Min-Max)	47-63 Hz
Terminal marking indication	Yes
Connection type	Push-in clamp
Contains Batteries and/or Accumulator	No
Battery ou Accumulator (Pack1)	Not applicable
Connected object	No
