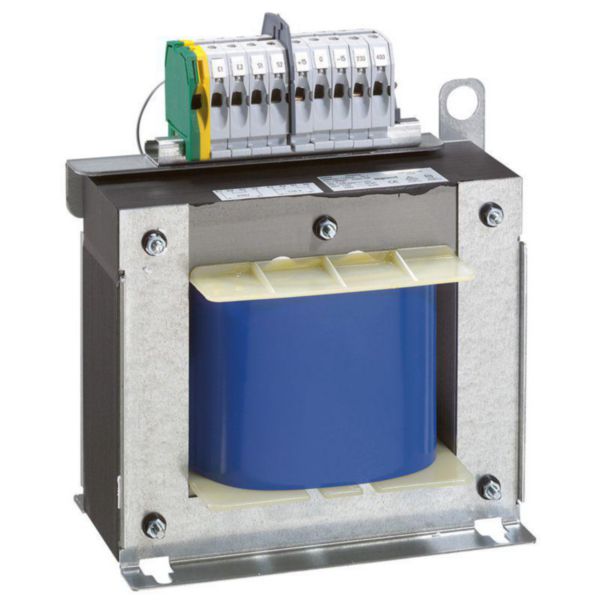

Name: Control and signalling transfo - 1 Ph - prim 4630 V / sec 24 V - 1600 VA - screw
SKU: 044249

Control and signalling transfo - 1 Ph - prim 4630 V / sec 24 V - 1600 VA - screw

LEGRAND

Control and signalling transfo - 1 Ph - prim 4630 V / sec 24 V - 1600 VA - screw

REF. 044249 EAN. 3245060442491

Compare You can only compare 4 products, you must remove 1 to add this one

Control, safety and circuit isolation transformers - single-phase - IP 2X or XXB up to 400 VA (coupling strip not mounted) - IP XXA over 400 VA - IK 04 - Conform to IEC EN 61558 - 2 - 2 and 2 - 4 or 2 - 6, UL506 and CSA C22 - 2 - No 66 - UL USA and Canada agreements - Products suitable for building equipment conforming to standards EN 61131 - 2, EN 60204 - 1 and EN 60439 - 1 - Active parts protected by cover up to 1000 VA - Interference filtering (except Cat.Nos 0 442 16/17/18) - Direct fixing possibility on symmetrical rail up to 250 VA - Supplied with coupling strip 0 V secondary / earth up to 1000 VA (except spring connection range)
Control and safety - screw connectionInput voltage = 460 V ± 20 V~ Output voltage = 24 VA - Power in VA according to IEC and CSA : 1600 - Power in VA according to UL : 700 - Instantaneous admissible power at cos Ï = 0,5 : 9100

Built as safety transformer	Yes
Built as isolating transformer	No
Built as energy saving transformer	No
Primary voltage 1 (Min-Max)	440-440 V
Primary voltage 2 (Min-Max)	460-460 V
Primary voltage 3 (Min-Max)	480-480 V
Secondary voltage 1 (Min-Max)	24-24 V
Rated apparent power	1600 VA
Type of insulation material according to IEC 85	B
Short-circuit-proof	No
Relative short circuit voltage	1.6 %

Width	220 mm
Height	245 mm
Depth	191 mm
Degree of protection (IP)	Other
Ring core	No
Suitable for mounting on PCB	No
Suitable for distribution board	No
degree of impact strength (IK)	IK04
Voltage type	AC
Terminal marking indication	Yes
Connection type	Screwed terminal
