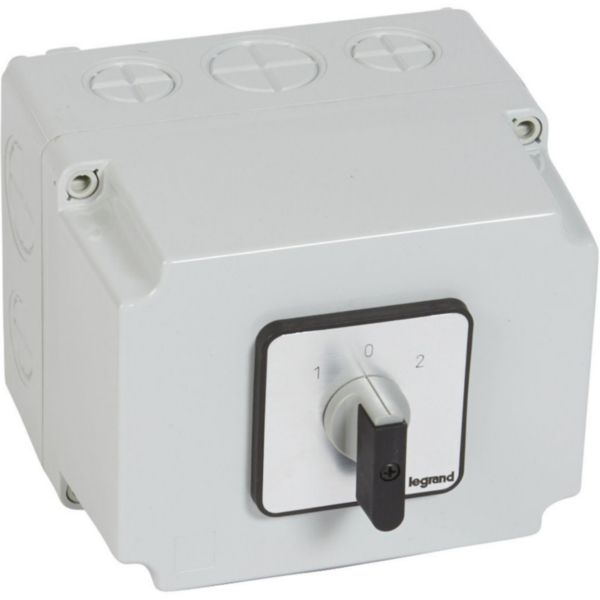

Name: Cam switch - changeover switch with off - PR 63 - 4P - 63 A - box 135x170 mm
SKU: 027753

Cam switch - changeover switch with off - PR 63 - 4P - 63 A - box 135x170 mm

LEGRAND

Cam switch - changeover switch with off - PR 63 - 4P - 63 A - box 135x170 mm

REF. 027753 EAN. 3245060277536

Compare You can only compare 4 products, you must remove 1 to add this one

Cam switches insulating box - For selecting and changing the status of the circuits into which it is integrated - For viewing the state of equipment according to the position of the selector lever - Boxed device, class II - Contacts with positive opening and double breaking of poles - Presentation : black or grey/black selector lever, faceplate with marking - Conform to standards IEC EN 60947 - 3 - IP 65 for 76 x 76 and 96 x 120 mm boxes - IP 55 for 135 x 170 mm boxes
Function : changeover switchWith off - 135 x 170 mm box - Number of poles : 4 - Range : PR 63 - Max. rating AC 21 : 63 A - Number of contacts : 8

Type of switch	Level switch
Number of poles	4
Max. rated operation voltage Ue AC	690 V
Rated permanent current Iu	63 A
Number of switch positions	3
With zero (off) position	Yes

With retraction in 0-position	No
Device construction	Surface mounted device
Complete device in housing	Yes
Type of control element	Wing knob
Front shield size	72x72 mm
Degree of protection (IP), front side	IP55
