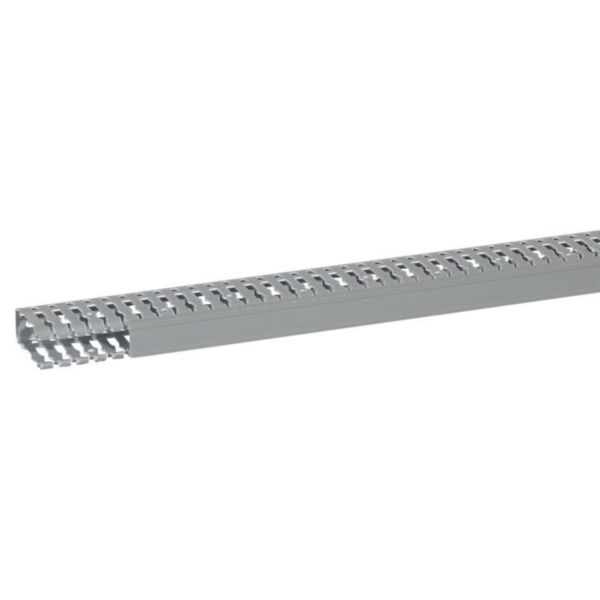

Name: Cable ducting (base + cover) Transcab - 25x60 mm - grey RAL 7030
SKU: 636102

Cable ducting (base + cover) Transcab - 25x60 mm - grey RAL 7030

LEGRAND

Cable ducting (base + cover) Transcab - 25x60 mm - grey RAL 7030

REF. 636102 EAN. 3245066361024

Compare You can only compare 4 products, you must remove 1 to add this one

Transcab cable ducting - 6.5 mm wide fingers with a 6 mm spacing - Accepts up to 6 mm ² without breaking side wall finger - Two pre - scored lines allow removal of fingers - Bump on side wall fingers help cabling - Rounded fingers prevent injury during cabling - Conform to EN 500 85 parts 2 and 3 - Plastic cable ducting (base + cover) - Side perforations at intervals of 12.5 mm - Length : 2 m
Grey RAL 7030 - PVC - Width x Height : 25 x 60 mm - Capacity : 1159 mm ²

Self-extinguishing	Yes
Flexible	No
Usable cross section	1159 mm²
Type of fastening	Bottom perforation
With cover	Yes
Colour	Grey
Operating / setting temperature	-5-60 °C
Storage temperature	-25-60 °C

2 documents

Select all

Technical Sheet

F01894EN-02.pdf pdf (2.49 Mo)

Technical Sheet

F01894FR-02.pdf pdf (2.47 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0479.pdf pdf (0.07 Mo)

3 documents

Select all

Agreement

UL recogn-E212478 (0.09 Mo)

PEP

LGRP-01659-V01.01-EN.pdf pdf (0.56 Mo)

Agreement

NF Conduits-641237C (0.18 Mo)

Cable ducting (base + cover) Transcab - 25x60 mm - grey RAL 7030
