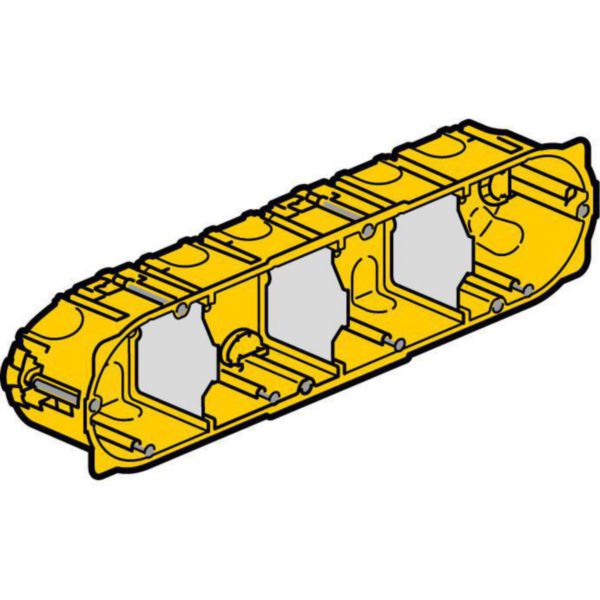

Batibox - Flush mounting box - 4 gang German std - depth 50 mm - dry partitions

Name: Batibox - Flush mounting box - 4 gang German std - depth 50 mm - dry partitions
SKU: 080054

Batibox LEGRAND

REF. 080054 EAN. 3245060800543

Compare You can only compare 4 products, you must remove 1 to add this one

Multi-gang boxes - For wiring equipment using screws - Drilling diameter 67 mm - Supplied with 1 removable divider for accomm odating extended functions For 60 and 71 mm fixing centres - Compatible with : Arteor, Galea Life, Mosaic, Valena, Niloé, Kaptika - Depth 50 - 4-gang or 8/10 modules - Horizontal or vertical use

Mounting method	Hollow wall
Shape	Oval
Construction type	Device connection box (round/square)
Model	4-fold
Equipped with	None
Diameter	67 mm
Length	284 mm
Width	72.8 mm
Inner depth	50 mm
For number of electric fittings	10
Mounting switching equipment	Screw or spread out
With screws	Yes
For tube diameter	Other
Suitable for cable diameter	16-25 mm
Pipe locking	No
Inlet from the rear	Yes
Number of inlets	12
Material	Plastic

Halogen free	Yes
Surface protection	Untreated
Colour	Yellow
Degree of protection (IP)	IP20
Cover model	None
Cover attachment	Other
Sealable	No
Circuit integrity	None
With screening	No
Air tight	No
Number of poles of the clamp	0
Clamp position fixed	No
Luminaire hook mounting	No
Nozzle	None
degree of impact strength (IK)	IK04
Operating / setting temperature	-5-40 °C
Storage temperature	-5-60 °C
