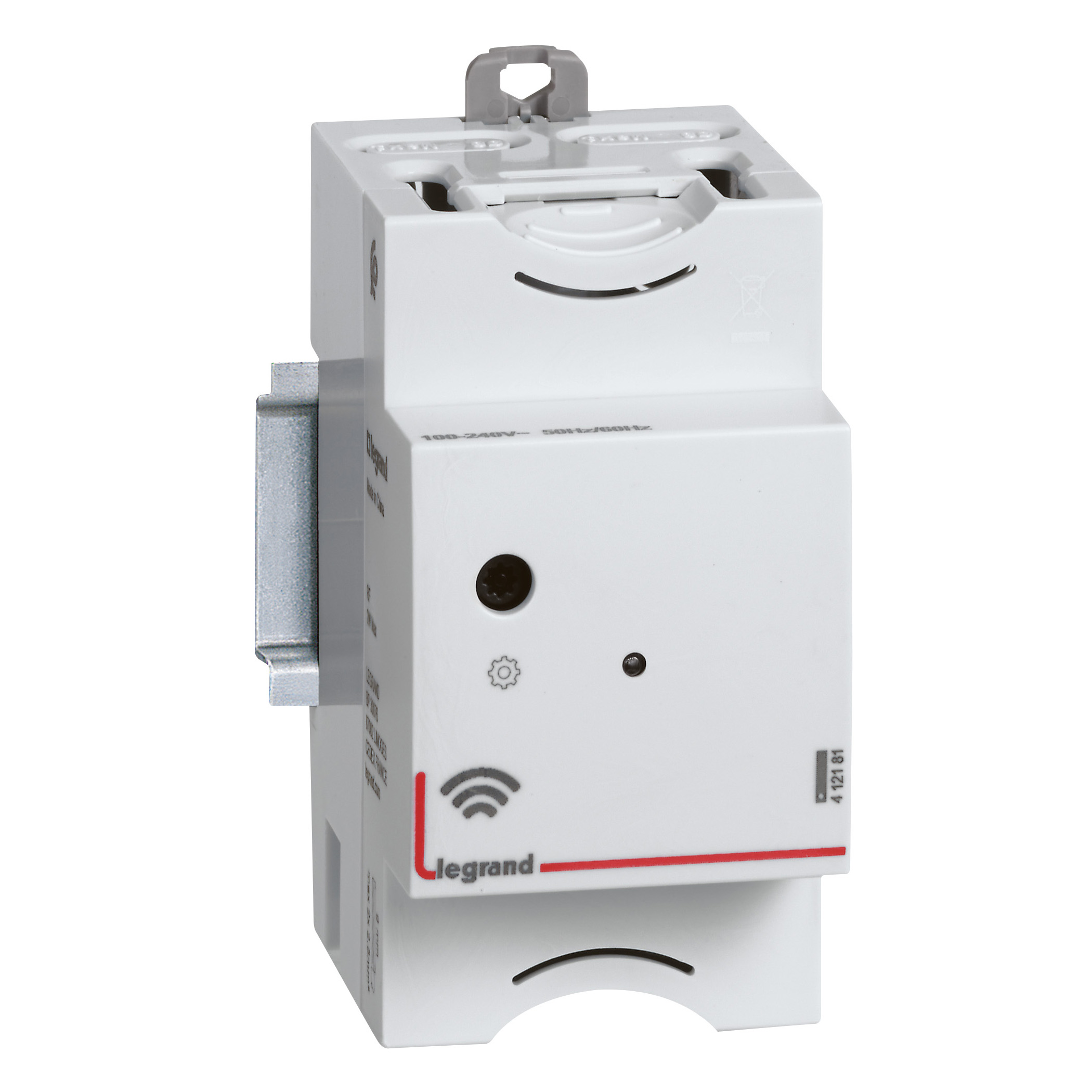

Zigbee-Wi-Fi modular gateway with Netatmo

Legrand

Zigbee-Wi-Fi modular gateway with Netatmo

REF. 412181B EAN. 3414973088328
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency Yes
Bus system LON No
Bus system Powernet No
Radio frequency bidirectional Yes
Model Multiple interface
Mounting method DRA (DIN-rail adaptor)
Width in number of modular spacings 2.5
Demounting protection No
With LED indication Yes
Updateable Yes
Operating voltage 100-240 V
Voltage type AC
Protocol TCP/IP
Provider dependent No
Visualization No
Web-Server No
Radio interface Yes
IR interface No
Degree of protection (IP) IP3X
Width 45 mm
Height 88.9 mm
Depth 67.2 mm
degree of impact strength (IK) IK04
Operating / setting temperature -5-45 °C
Storage temperature -40-70 °C
Supply current 0.01-0.02 A
Terminal marking indication Yes
Type of load Not applicable
Halogen free Yes
Connection type Screwed terminal , Cable
Terminals capacity 1-2.5 mm²
Label space/information surface Yes
Fitted with USB plug No
Addressable Yes
Connected object Yes
Application store for download Multistore
Connectable by Internet box Yes
Application name Home + Control

Documentation

5 documents
Technical Sheet
F04582FR-00.pdf pdf (2.2 Mo)
Instruction Use
LE15596AA-FR.pdf pdf (1.69 Mo)
Technical Sheet
F04582EN-00.pdf pdf (2.23 Mo)
Instruction Use
LE15596AA-EN.pdf pdf (1.66 Mo)
Technical Sheet
F04582NL-00.pdf pdf (1.93 Mo)
