Waterproof Cabinet Plexo IP 65 - IK 07

Plexo™ LEGRAND

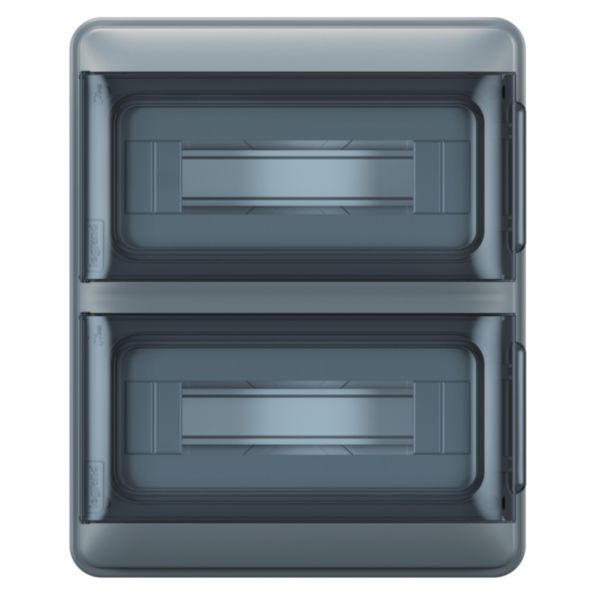

Waterproof Cabinet Plexo IP 65 - IK 07

REF. 601894 EAN. 3414972485265
Plexo, waterproof plastic cabinet for industrial or tertiary use, offers IP65 protection and IK07 impact resistance for 24 modules. Its 2-row, 12-module layout with 150mm rail spacing and pre-mounted earth/neutral blocks ensures ready
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Plexo, waterproof plastic cabinet for industrial or tertiary use, offers IP65 protection and IK07 impact resistance for 24 modules. Its 2-row, 12-module layout with 150mm rail spacing and pre-mounted earth/neutral blocks ensures ready

Product characteristics
  • Waterproof Plexo Cabinet 2 rows of 12 modules - 285x350x106mm
  • Supplied with Earth and Neutral terminal blocks, class II caps
  • IP65 - IK 07 - Class II - Box colour light grey L750A - Cover colour dark grey R746A
  • Space between rails 150mm
  • Self-Extinguishing: resistance to incandescant wire 650°C
Recommendation / Restriction
  • This product should be installed under shelter.

The product's benefits

Installation
  • Allows easy installation thanks to its 3 fixing points, plumbing adjustment thanks to oblong holes, captive screw and easy access, reversible cover, knockouts on the top and bottom of the cabinet, terminal block already mounted - Easy box/cover assembly thanks to a developed patent to facilitate installation
Usage
  • Provides shock and weather protection for installed modular devices
Avantages
  • Plexo is a short range of waterproof cabinets from 2 to 24 modules.
  • Cabinet ready to use
  • Robust design as Plexo³

Technical characteristics

Mounting method Surface mounted
number of rows 2
Number of openings for socket outlets 0
Width in number of modular spacings 12
Type of covering Door
Cover model Closed
Type of door Single
Transparent cover/door Yes
Signal passing door Yes
With lock No
Type of closure Other
Housing material Plastic
Built-in depth 0 mm
Built-in height 0 mm
Built-in width 0 mm
Inner depth 0 mm
Earthing terminal block Yes
Neutral terminal block Yes
DIN-rail Yes
With mounting plate No
Extension possible No
Sealable No
Colour Grey
EMC-version No
RAL-number 7046
Degree of protection (IP) IP65
Height 350 mm
Width 285 mm
Depth 106 mm
Enclosure capacity (Nb of modules) 24
degree of impact strength (IK) IK07
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -15-40 °C
Halogen free No
Fitted with rainproof plate protection No
