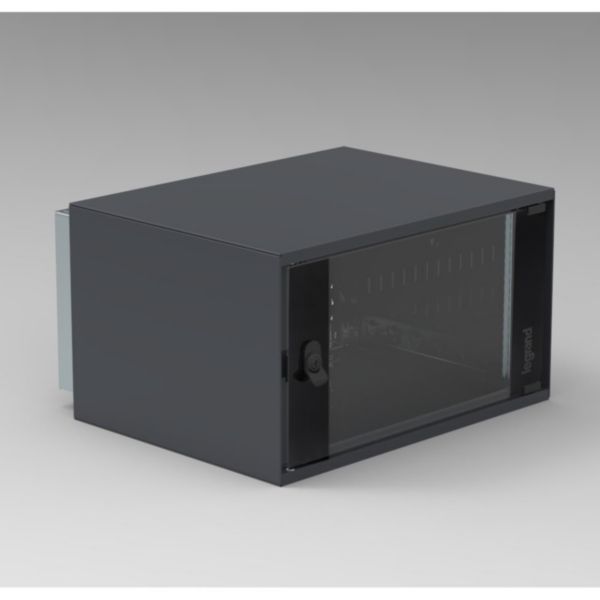

Wall mounting enclosure 6U 600 x 525 x 342mm with glass door LCS3

LCS³ LEGRAND

Wall mounting enclosure 6U 600 x 525 x 342mm with glass door LCS3

REF. 446180 EAN. 3414971173804

The wall mounting enclosures have been specially developed to allow building related IT networks to be installed and managed as quickly and efficiently as possible.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The wall mounting enclosures have been specially developed to allow building related IT networks to be installed and managed as quickly and efficiently as possible.

Product characteristics
  • 6U
  • Dimensions (WxDxH) : 600 x 525 x 342
  • Colour black RAL 9011, powder coating finishing
  • The 19-inch profiles have a pattern of holes on the side to allow accessories to be fitted
Recommendation / Restriction
  • Maximum load 100kg

The product's benefits

Installation
  • MWE’s are conveniently packed in boxes, which are easy to ship. In the lightweight box, you will find the enclosure and wall fastening. One engineer can very quickly install the enclosure without assistance.

Technical characteristics

Mounting level Front and rear
Model With permanent frame
Type of profile rail L-shape
Number of doors 2
Type of ventilation None
Width 585 mm
Height 342 mm
Depth 525 mm
Modular spacing 482.6 mm (19 inch)
Number of height units 6
Max. load capacity 100 kg
With roof plate Yes
With earthing Yes
With front door Yes
With sidewall Yes
Demountable Yes
Material Steel
Surface finishing Powder coating
Colour Black
RAL-number 9011
Degree of protection (IP) IP21
Degree of protection (NEMA) Other

Documentation

2 documents
Technical Sheet
Instruction Use
005X0-344-0C.pdf pdf (1.27 Mo)
1 document
Catalogue Commercial Page
ex223001_1013.pdf pdf (0.07 Mo)
