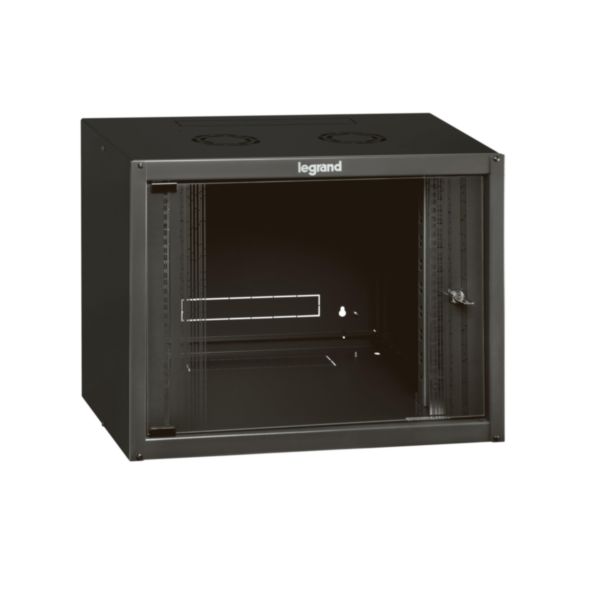

Wall-mounting cabinet 19 inches 6U 600mm width 450mm depth

Linkeo LEGRAND

Wall-mounting cabinet 19 inches 6U 600mm width 450mm depth

REF. 646200 EAN. 3414970967770
Linkeo equipped cabinet for VDI cabling infrastructures offers 6U 19inches capacity with adjustable uprights and robust steel construction. Its reversible safety glass door with lock, IP20 to IK08 protection and pre-cut cable entries ensure
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Linkeo equipped cabinet for VDI cabling infrastructures offers 6U 19inches capacity with adjustable uprights and robust steel construction. Its reversible safety glass door with lock, IP20 to IK08 protection and pre-cut cable entries ensure

Product characteristics
  • Equipped with fix side panel
  • Supplied with 2x19 inches up Rights adjustable in depth and with U marking.
  • Reversible flat safety glass door with screen - printing and integrated lock
  • 3 pre-cut cable entries (top, bottom and rear). Perforations for natural ventilation. Can also house fan kit ref 646238
  • Anthracite grey RAL 7016
Recommendation / Restriction
  • For indoor use only

The product's benefits

Installation
  • Delivered ready-assembled
Usage
  • Thanks to its integrated lock, it can be used in any space
Avantages
  • Continuity of the cabinet metal conductive parts is achieved by design
  • Protected against solid objects larger than 12.5mm (IP20) and mechanical impact with an energy of 5 joules (IK08)
  • The textured polyester coating provides an excellent resistance to corrosion and scratching

Technical characteristics

Mounting level Front side
Model With permanent frame
Type of profile rail L-shape
Number of doors 1
Type of ventilation Passive
Width 605 mm
Height 359 mm
Depth 454 mm
Modular spacing 482.6 mm (19 inch)
Number of height units 6
Max. load capacity 18 kg
With roof plate Yes
With earthing Yes
With front door Yes
With sidewall Yes
Demountable Yes
Material Steel
Surface finishing Powder coating
Colour Grey
RAL-number 7016
Degree of protection (IP) IP20
Degree of protection (NEMA) Other
degree of impact strength (IK) IK08
Fitted with door or cover Yes

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
70.200
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)
