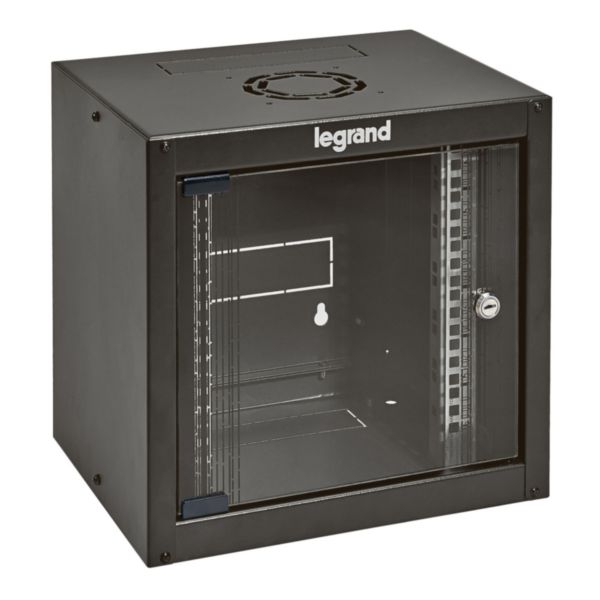

Wall-mounting cabinet 10 inches 6U 300mm depth

Linkeo LEGRAND

Wall-mounting cabinet 10 inches 6U 300mm depth

REF. 646230 EAN. 3414970967947
Linkeo equipped cabinet for VDI cabling infrastructures offers 10inches 6U capacity and robust steel construction. Its reversible safety glass door with lock, IP20-IK08 protection, and compact design ensure secure cabling.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Linkeo equipped cabinet for VDI cabling infrastructures offers 10inches 6U capacity and robust steel construction. Its reversible safety glass door with lock, IP20-IK08 protection, and compact design ensure secure cabling.

Product characteristics
  • Equipped with fix side panel
  • Supplied with 2x19 inches up Rights adjustable in depth and with U marking.
  • Reversible flat safety glass door with screen - printing and integrated lock
  • 3 pre-cut cable entries (top, bottom and rear). Perforations for natural ventilation. Can also house fan kit ref 646238
  • Anthracite grey RAL 7016
Recommendation / Restriction
  • For indoor use only

The product's benefits

Installation
  • Delivered ready-assembled
Usage
  • Thanks to its integrated lock, it can be used in any space
Avantages
  • Continuity of the cabinet metal conductive parts is achieved by design
  • Protected against solid objects larger than 12.5mm (IP20) and mechanical impact with an energy of 5 joules (IK08)
  • The textured polyester coating provides an excellent resistance to corrosion and scratching

Technical characteristics

Mounting level Front side
Model With permanent frame
Type of profile rail L-shape
Number of doors 1
Type of ventilation Passive
Width 373 mm
Height 359 mm
Depth 303 mm
Modular spacing 254 mm (10 inch)
Number of height units 6
Max. load capacity 18 kg
With roof plate Yes
With earthing Yes
With front door Yes
With sidewall Yes
Demountable Yes
Material Steel
Surface finishing Powder coating
Colour Grey
RAL-number 7016
Degree of protection (IP) IP20
Degree of protection (NEMA) Other
degree of impact strength (IK) IK08
Fitted with door or cover Yes

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
40.300
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)
