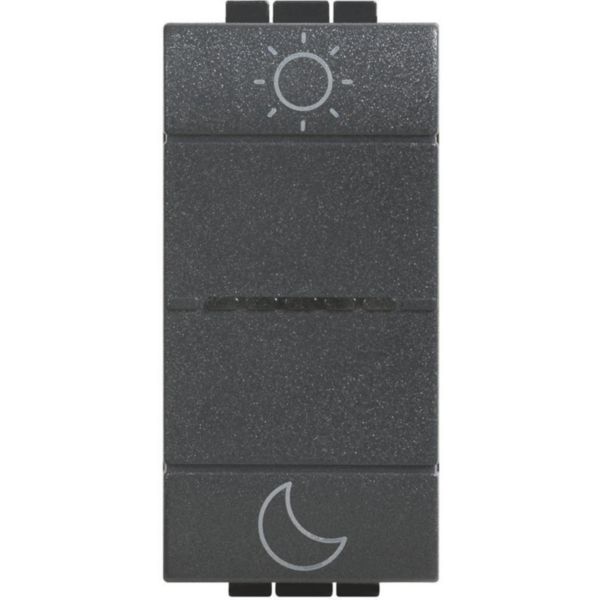

Wake Up/Sleep wireless switch Living Light with Netatmo

Name: Wake Up/Sleep wireless switch Living Light with Netatmo
SKU: LN4574CWI

Living Light Bticino

REF. LN4574CWI EAN. 8005543671672

Compare You can only compare 4 products, you must remove 1 to add this one

To add your Sleep/Wake Up wireless switch to your connected installation, you first need to purchase and install a Living Light with Netatmo gateway, as well as one or more Living Light with Netatmo connected switches, power outlets or lighting micromodules

The wireless switch has the same dimension of traditional 1module switch. It can be installed onto a flush-mounting box.

Install the Sleep/Wake Up wireless switch next to your bed, and launch the Sleep scenario which you will have customised to switch off the lights and lower the roller shutters

Radio frequency	2400 MHz
Rolling code system	Yes
Code length (Bit)	128
Range	185 m
Number of commands	2
With manual radio transmitter	Yes
Flush-mounted radio transmitter	Yes
Surface mounted radio transmitter	No
With radio coding device	Yes
Degree of protection (IP)	IP40
Keyboard protection cover	No
Current supply	Battery
Width	22 mm
Height	47 mm
Depth	43.6 mm
Built-in depth	33.5 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	5-45 °C
Storage temperature (Min-Max)	0-45 °C
Standby consumption	0 mA
Mandatory neutral	No
Stress test conformity (1000V)	No
Colour	Anthracite
RAL-number	7015

Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Flush-mounted
Contains Batteries and/or Accumulator	Yes
IEC code (Pack1)	CR2032
Battery ou Accumulator (Pack1)	Battery (not rechargeable)
Element Composition (Pack1)	Lithium (battery or accumulator)
Number of Pack 1	1
Number of Single Element (Pack1)	1
Single Element weight (Pack1)	3 g
Pack1 Location	Product includes a battery
Regulation Type (Pack1)	P : Portable (Standard format)
Connected object	Yes
Operating method	Zigbee
Application store for download	Google Play Store , App Store
With voice command	Yes
Programmable	Yes
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Compatible voice assistants	Google Assistant , Amazon Alexa , Apple Siri
Product use function	Lighting management
Application name	Home + Control
Programming way	Smartphone apps
