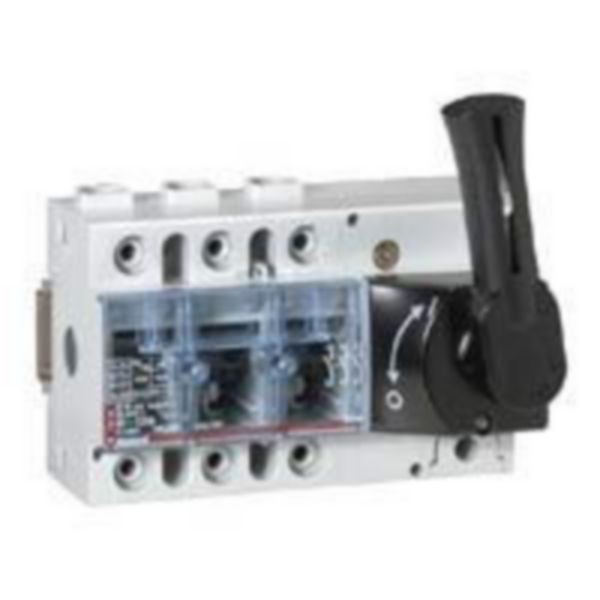

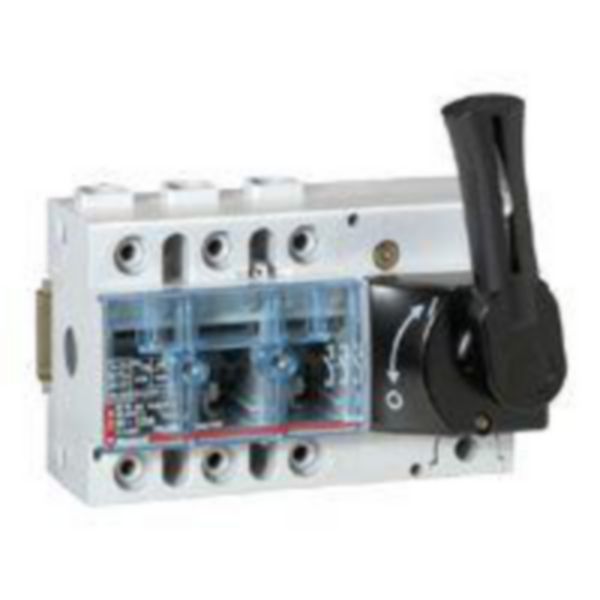

Vistop isolating switch 3 poles 125A with black front handle

Name: Vistop isolating switch 3 poles 125A with black front handle
SKU: 022534

Vistop LEGRAND

REF. 022534 EAN. 3245060225346

Vistop, safety switch for on-load circuit breaking by visible isolation of the contacts

Compare You can only compare 4 products, you must remove 1 to add this one

Vistop, safety switch for on-load circuit breaking by visible isolation of the contacts

According to EN/IEC standard 60947-3, suitable for commercial and middle power installations
Rated insulation voltage of 690V - Rated impulse withstand voltage of 8kV
Connection through cage terminals
7,5 DIN modules
Padlockable handle in open position: 1 to 3 padlocks

Version as main switch	Yes
Version as maintenance-/service switch	Yes
Version as safety switch	No
Version as emergency stop installation	No
Version as reversing switch	No
Max. rated operation voltage Ue AC	690 V
Rated operating voltage (Min-Max)	690-690 V
Rated permanent current Iu	125 A
Rated permanent current at AC-21, 400 V	125 A
Rated short-time withstand current lcw	3.5 kA
Rated operation power at AC-23, 400 V	70 kW
Switching power at 400 V	70 kW
Conditioned rated short-circuit current Iq	12 kA
Number of poles	3
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0

Number of auxiliary contacts as change-over contact	0
Motor drive optional	No
Motor drive integrated	No
Voltage release optional	No
Device construction	Built-in device fixed built-in technique
Suitable for floor mounting	No
Suitable for front mounting 4-hole	Yes
Suitable for front mounting centre	Yes
Suitable for distribution board installation	Yes
Suitable for intermediate mounting	No
Colour control element	Black
Type of control element	Wing knob
Interlockable	Yes
Type of electrical connection of main circuit	Screw connection
Degree of protection (IP), front side	IP2X
