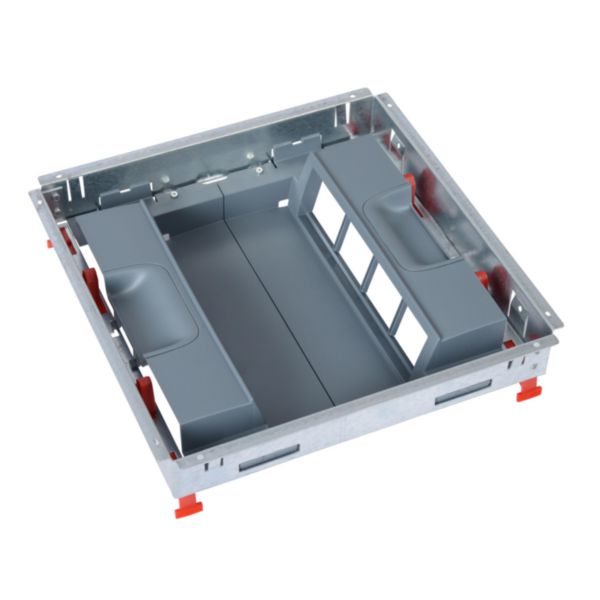

Name: Verticals supports kit for standard floor box, capacity 16 modules (composed by 2 supports 8 modules)
SKU: 088025

Verticals supports kit for standard floor box, capacity 16 modules (composed by 2 supports 8 modules)

- LEGRAND

Verticals supports kit for standard floor box, capacity 16 modules (composed by 2 supports 8 modules)

REF. 088025 EAN. 3414970755162

Compare You can only compare 4 products, you must remove 1 to add this one

The vertical mounting of the wiring devices is an ideal solution in a low depth floor (from 68mm) because it allows to connect all kind of plugs (including the straight ones). Especialy adapted for renovation.
Supports compatible with the wiring devices Legrand Mosaic and Arteor.
Kit's frame in galvanised steel for protection against the corrosion.
Supports meet the IEC/EN 60670-23 standard. Moreover, with the lid of floor box closed, they offer a degree of protection IP24 (no risk of digital contact on the electrical connections, and protection against water projections)

Floor box modular to compose : matchs with your needs (type of installation, number of modules, finishes), gives time for reflexion, protects the product during the progression of the work site (the installation follows the steps of the site).

Adapts to the surrounding environment thanks to the choice possibilities of the standard lid to associate with it : plastic or Stainless steel or Brass finish.

A universal range available in three sizes, adapted to any kind of floor (raised floors, screed floors) and upgradable because equipped with commons wiring devices supports (a standard floor box can become a flush one without touching the electrical connexions).
Fast installation without tool : the frame of supports kit clips in any kind of floor (directly in the raised floor or through one of the two backboxes in the screed floor).

Number of appliances to build in	8
Number of conduit inlets	1
Length	281.3 mm
Width	281.3 mm
Depth	67.7 mm

Model	Support shape
Mounting method installation unit	Screwing
Number of strain relieves	4
Material	Other
