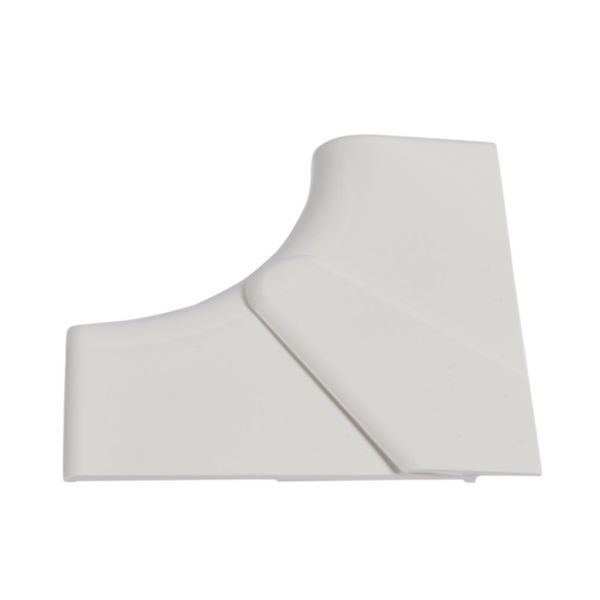

Variable internal angle for snap-on antimicrobial trunking 50x180mm

DLP LEGRAND

Variable internal angle for snap-on antimicrobial trunking 50x180mm

REF. 075714 EAN. 3245060757144
Cable management accessory for antimicrobial Mosaic trunking with direct clipping, offering a variable internal angle from 80 to 100 degrees. Its white antimicrobial plastic with silver compound helps inhibit bacterial growth.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Cable management accessory for antimicrobial Mosaic trunking with direct clipping, offering a variable internal angle from 80 to 100 degrees. Its white antimicrobial plastic with silver compound helps inhibit bacterial growth.

Product characteristics
  • Respect the protection index
  • Variable internal angle 80 to 100 degrees
  • White antimicrobial. Contains a silver compound to prevent the growth of bacteria on the surface.
  • Composed with several elements : 1 or 2 connector board (for trunking 1 or 2 compartments) and a cover
  • Colour: white

The product's benefits

Installation
  • Clips directly onto the body of the trunking
Usage
  • The internal angles ensure the continuity of the flexible cover on the angles, thus preventing the cover from being cut and remaining aesthetic

Technical characteristics

Width 180 mm
Depth 50 mm
Shape Symmetric
Number of covers 0
Cover width 1 0 mm
Cover width 2 0 mm
Cover width 3 0 mm
Model Base unit
Angle (Min-Max) 80-100 °
Material Plastic
Material quality Other
Halogen free Yes
Antimicrobial treatment Yes
Surface protection Other
Colour White
RAL-number 9003
With protective foil No
With duct connector No
Bottom perforation No
Mounting method cover Inner lying
With cable fixing clip No

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
0.892
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)

Documentation

3 documents
Instruction Use
LE00999AB.pdf pdf (0.39 Mo)
Technical Sheet
F01431EN-05.pdf pdf (3.77 Mo)
Technical Sheet
F01431FR-04.pdf pdf (3.76 Mo)
2 documents
Catalogue Commercial Page
ex223001_1065.pdf pdf (0.12 Mo)
Catalogue Technical Page
ex223001_1066-1067.pdf pdf (0.17 Mo)
