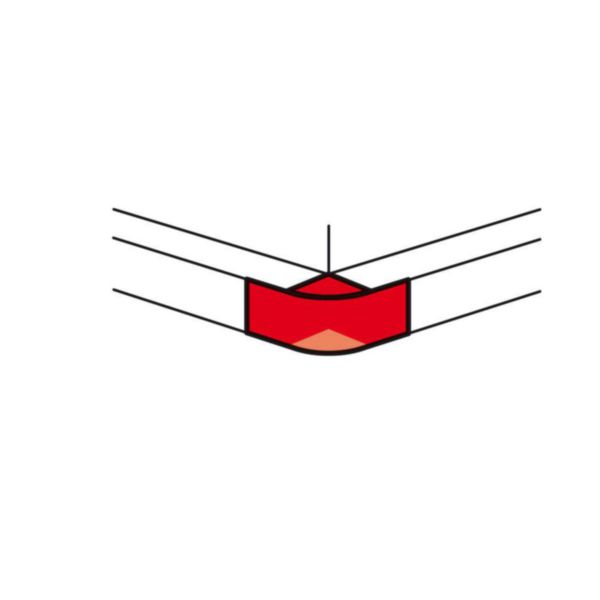

Variable external angle for universal Aluminium trunking 50x105mm with cover width 65mm

DLP LEGRAND

Variable external angle for universal Aluminium trunking 50x105mm with cover width 65mm

REF. 011231 EAN. 3245060112318
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Variable external angle of 89 to 94 degrees
  • Delivered with : 1 element to some extent high, 1 element to some extent low part and 1 anodized Aluminium curved cover
  • Respect the protection index
  • Improvement of aesthetics (covering of the cut)
  • Colour: grey aluminium

The product's benefits

Installation
  • Clippes directly on the body of the trunking (with or without division or separation partition)
Usage
  • Allows a neat and clean electrical installation finish

Technical characteristics

Number of covers 1
Cover width 1 65 mm
Cover width 2 0 mm
Cover width 3 0 mm
Symmetric Yes
Model Base unit and cover
Angle (Min-Max) 89-94 °
Material Aluminium
Material quality Other
Halogen free No
Antimicrobial treatment No
Surface protection Other
Colour Other
With protective foil No
With duct connector No
Bottom perforation No
Mounting method cover Inner lying
With cable fixing clip No
Width 105 mm
Depth 50 mm

Documentation

3 documents
Technical Sheet
F00639FR-04.pdf pdf (0.95 Mo)
Technical Sheet
F00639EN-04.pdf pdf (0.91 Mo)
Instruction Use
LE00394AA.pdf pdf (0.43 Mo)
2 documents
Catalogue Commercial Page
ex223001_1092.pdf pdf (0.09 Mo)
Catalogue Technical Page
ex223001_1095.pdf pdf (0.05 Mo)
1 document
PEP
LGRP-2014-040-V1-EN.pdf pdf (1.34 Mo)
