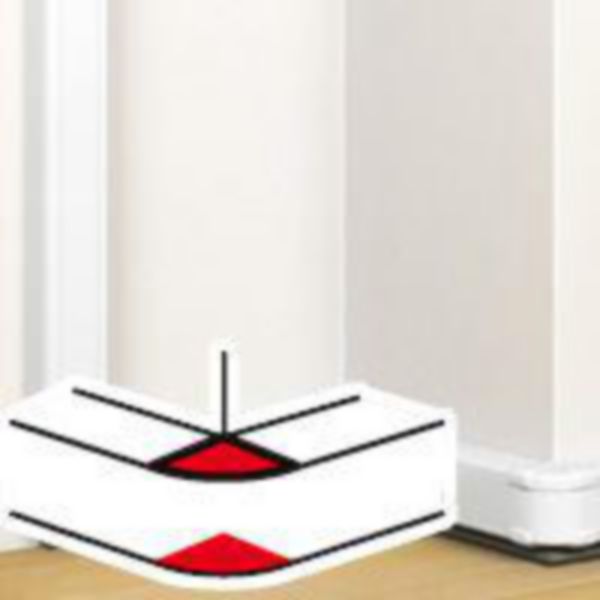

Variable external angle for snap-on trunking 50x105mm

DLP LEGRAND

Variable external angle for snap-on trunking 50x105mm

REF. 075632 EAN. 3245060756321
Cable management accessory for Mosaic trunking with direct clipping, this variable external angle 85° to 120° for 50x105 snap-on trunking maintains protection index and ensures flexible cover continuity and aesthetics.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Cable management accessory for Mosaic trunking with direct clipping, this variable external angle 85° to 120° for 50x105 snap-on trunking maintains protection index and ensures flexible cover continuity and aesthetics.

Product characteristics
  • Variable external angle of 85 to 120 degrees
  • Respect the protection index
  • Improvement of aesthetics (covering of the cut)
  • Composed with 2 elements for trunking 1 compartment, or 3 elements for trunking 2 compartments with partition junction
  • Colour: white

The product's benefits

Installation
  • Clips directly on the body of the trunking
Usage
  • The external angles ensure the continuity of the flexible cover at the corners, thus preventing the cover from being cut and improving aesthetics

Technical characteristics

Number of covers 0
Cover width 1 0 mm
Cover width 2 0 mm
Cover width 3 0 mm
Symmetric Yes
Model Base unit
Angle (Min-Max) 85-120 °
Material Plastic
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Colour White
RAL-number 9003
With protective foil No
With duct connector No
Bottom perforation No
Mounting method cover Inner lying
With cable fixing clip No
Width 100 mm
Height 96 mm
Depth 50 mm

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
0.376
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)
