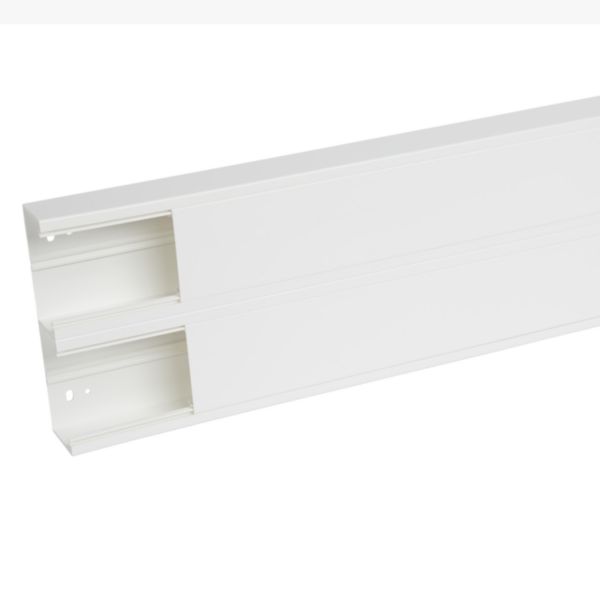

Name: Universal DLP-S trunking 190x50mm, 2 compartments, with 2 rigid covers of width 75mm
SKU: 638050

Universal DLP-S trunking 190x50mm, 2 compartments, with 2 rigid covers of width 75mm

DLP-S LEGRAND

Universal DLP-S trunking 190x50mm, 2 compartments, with 2 rigid covers of width 75mm

REF. 638050 EAN. 3245066380506

Compare You can only compare 4 products, you must remove 1 to add this one

Possibility of adapting removable separations
Compatible with all of the functions of Mosaic Program
Perforation oblong to facilitate the adjustment of
Comply with reliability, safety and technical performance requirements accord EN50085-2-1
Colour: white

Fixing by: wall plugs for immediate fixing (cat.no 030899), DLP rapid wall plug (ref 0308 97)or screw, nails…

Width	190 mm
Depth	50 mm
Length	2000 mm
Number of covers	2
Covers included	Yes
Cover width 1	75 mm
Cover width 2	75 mm
Symmetric	Yes
Construction type rectangular	Yes
Material	Plastic
Material quality	Polyvinyl chloride (PVC)
Halogen free	No
Antimicrobial treatment	No
Surface protection	Untreated

Colour	White
RAL-number	9003
Construction rear wall (inner side)	Perforated
With protective foil	Yes
Number of plug-in partitions	2
With duct connector	No
Bottom perforation	Yes
Mounting method cover	Inner lying
With cable fixing clip	No
Usable cross section	8034 mm²
Degree of protection (IP)	IP40
degree of impact strength (IK)	IK07
Operating / setting temperature	-5-60 °C
Storage temperature	-25-60 °C
