Product characteristics

• CX³ energy management system - Conform to IEC/EN 61131 - 2 (Programmable controllers) - CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely - All the modules of the system are equipped with two specific communication ports : one at the backside (for communication rail) and one underneath (for communication patch cords) - Power supply with specific module Cat.No 4 149 45 - Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E - Catalogue (giving also access to a 30 - day trial version of Energy Management Software Cat.No 4 149 38/39)

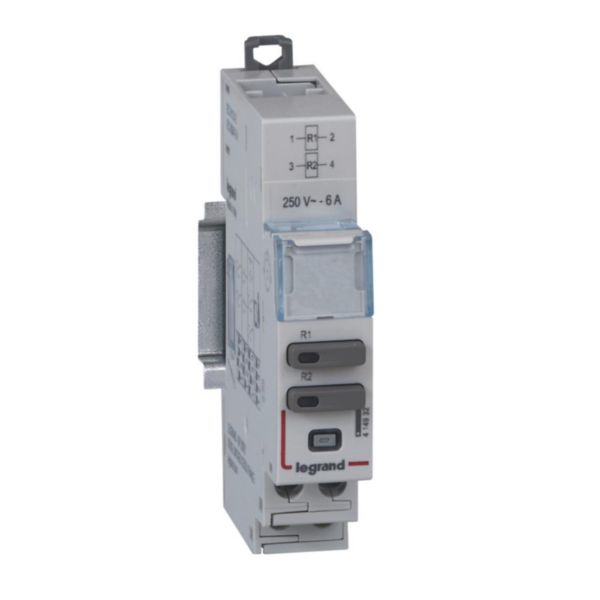

• Universal control module - Enables upstream busbar connection - 2 relays : 240 V~ - 6 A - Enables to remotely control different electrical loads or motorised controls associated to symmetrical rail mounting protection devices or head equipment (DPX³ MCCBs) - Equipped with DIP switches (on the side) allowing product configuration : contact type (NO + NC, 2 NO, etc...) and function (maintained or momentary contact) - Consumption : 0,456 W - 38 mA (12 V =) - Number of modules : 1
