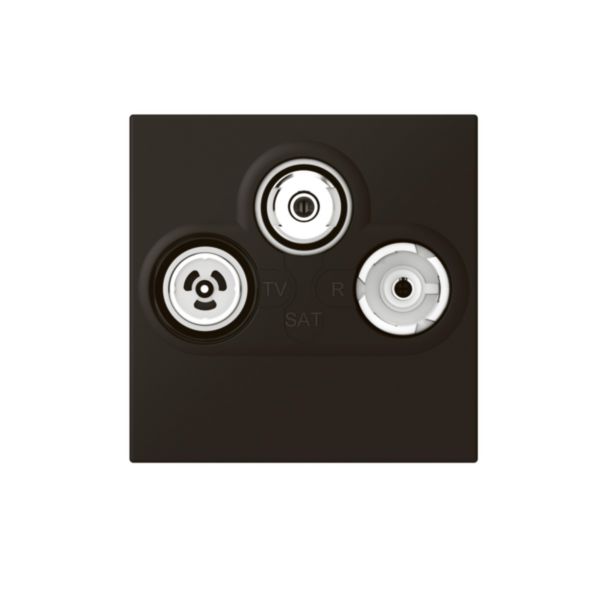

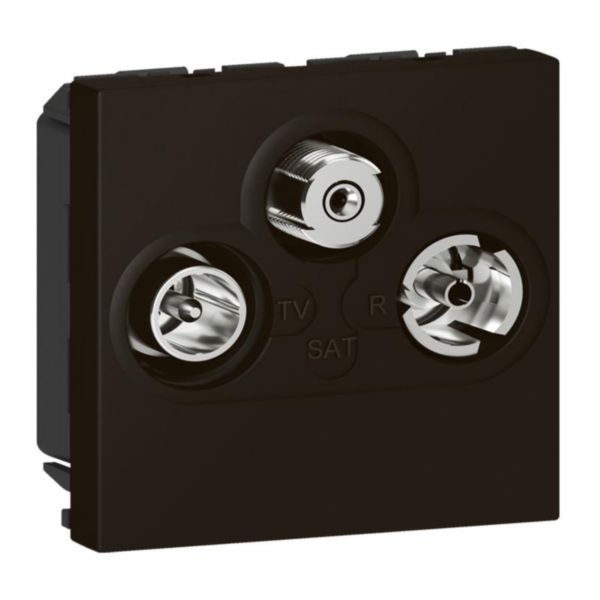

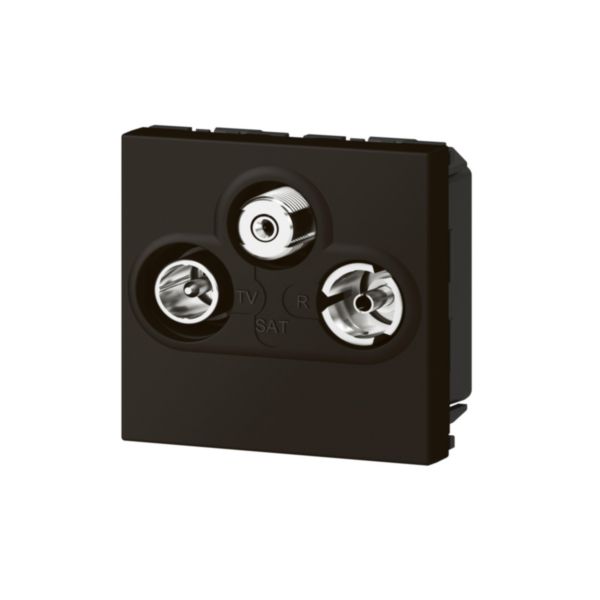

TV/R/SAT socket mat black
LEGRAND
TV/R/SAT socket mat black
REF. 079186L
EAN.
3414971637924
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Model | End socket |
|---|---|
| Type of socket outlet | TV/RD/SAT |
| DAB+ | Yes |
| Mounting method | Module frame |
| Number of modules (module system) | 2 |
| Cover | Central cover plate |
| Tap loss at 860 MHz | 1.5 dB |
| Tap loss at 2150 MHz | 2 dB |
| Number of outlets | 3 |
| Suitable for cable modem | No |
| Suitable for remote power supply | Yes |
| Radio frequency band | 87.5-240 MHz |
| SAT frequency band | 950-2400 MHz |
| Type of fastening | Snap mounting (engagement) |
| Colour | Black |
| Surface protection | Lacquered |
|---|---|
| Surface finishing | Matt |
| Material | Plastic |
| Material quality | Duroplast |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device depth | 33 mm |
| Min. depth of built-in installation box | 22 mm |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
