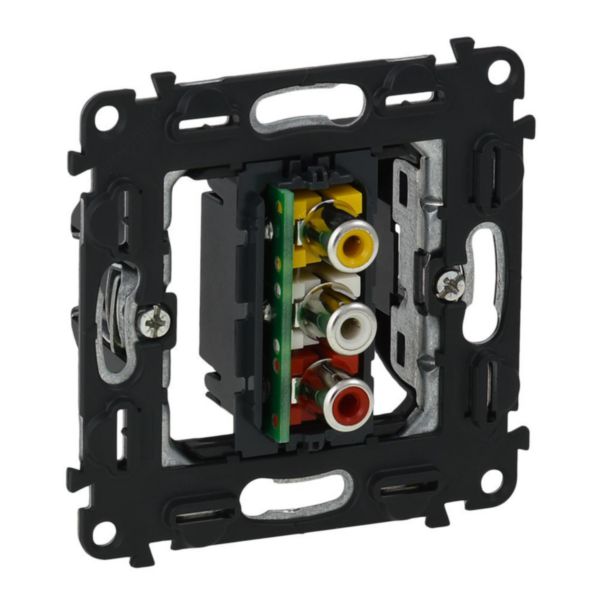

Triple RCA socket Valena In'Matic

Name: Triple RCA socket Valena In'Matic
SKU: 753075

Legrand

REF. 753075 EAN. 3414970475121

Compare You can only compare 4 products, you must remove 1 to add this one

Assembly arrangement	Basic element with central cover plate
Utilization	RCA/S-Video
Support ring	No
With dust cover	No
With hinged lid	No
Outlet direction	Straight
Imprintable label	Without indication field
With imprint	No
Mounting method	Flush-mounted
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No

Surface finishing	Matt
Transparent	No
Type of fastening	Engage (snap)
Number of modules (module system)	2
Suitable for number of connectors	3
With strain relief	No
Shielded buses	No
Shielded housing	No
Luster terminal	No
Suitable for degree of protection (IP)	IP40
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-5-35 °C

1 document

Select all

Instruction Use

LE07188AB.pdf pdf (1.4 Mo)
