Name: Trip-free switch DMX-SP-I 3 poles, fixed version and with rated current of 2500A
SKU: 670280

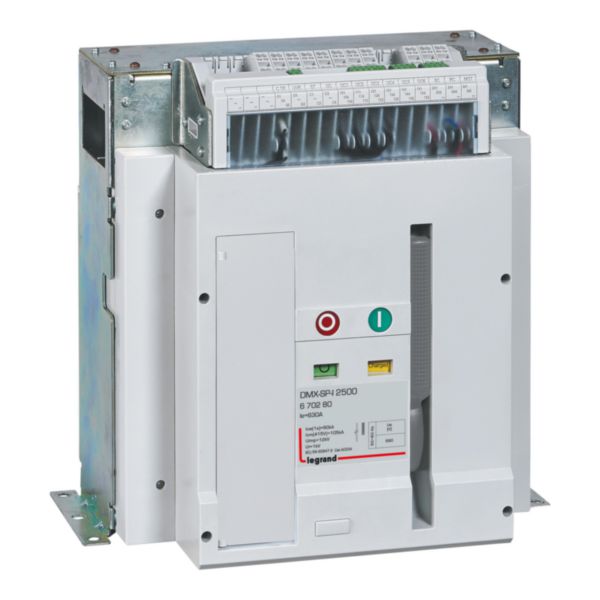

Trip-free switch DMX-SP-I 3 poles, fixed version and with rated current of 2500A

DMX-SP-I 2500 LEGRAND

Trip-free switch DMX-SP-I 3 poles, fixed version and with rated current of 2500A

REF. 670280 EAN. 3414972284103

Compare You can only compare 4 products, you must remove 1 to add this one

Breaking capacity of 42kA, according to EN/IEC standard 60947 - 2, suitable for protection of high power industrialinstallations. Rated insulation voltage of 1000VRated impulse withstand voltage of 12kV
Climatic condition according to IEC/EN 60947 - 1 Annex Q, Cat. F subject to temperature,humidity, vibration, shock and salt mist.
Can be equipped with releases (undervoltage and shunt releases) and auxiliary contacts. Can used with rotary handles or motor operator. Locking Accessories are available.
Has diffent type of possible connection accessories: cage terminals, spreader and rear terminals.Is available also in a plug-in version (circuit breaker fitted with special terminals and mountedon a plug-in base) or in a draw-out version (a plug-in version fitted with a"Debro-lift" mechanism which can be used to withdraw the breaker whilekeeping it on its base)

Electric and mechanical robustness, and chances of accessorizing, are perfectly suited for adapt to any installation without special requirements in terms of breaking capacity or continuity of service. Ideal for protecting installations in hotels office buildings and small commercial buildings and small-scale industry.

DMX-SP 2500/4000, in fixed or draw-out version, is the ideal solution for routine projects.With DMX-SP platform, a new range of air circuit breakers and trip free switches are available, to meet the performance requirements of any standard installation for current ratings up to 4000 A and breaking capacities up to 65 kA. Quality, reliability and strength are the main attributes of this new range, which provides effective protection for all type of installations.

Rear terminals not mounted by default on the device to avoid to buy and to throw away them, in case of use of front terminals connection.Connection choice done by customer,according to specific exigences, so to optimize costs.
