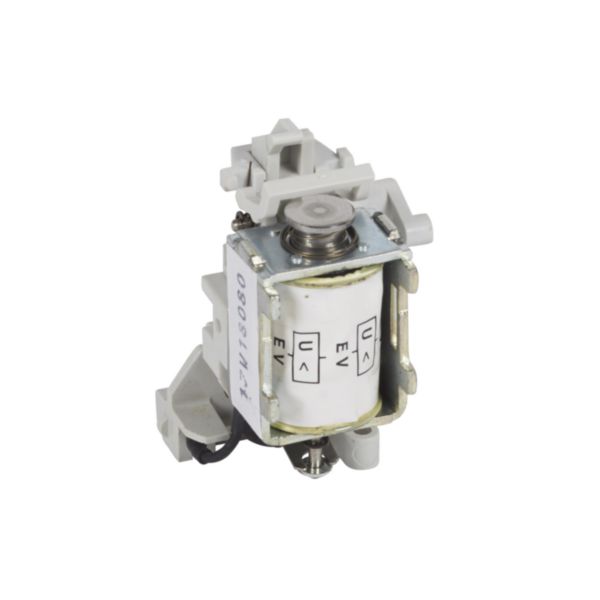

Time-lag modules release - for Cat.Nos 0 261 90/91

Name: Time-lag modules release - for Cat.Nos 0 261 90/91
SKU: 422623

LEGRAND

REF. 422623 EAN. 3414970543080

Compare You can only compare 4 products, you must remove 1 to add this one

DPX³ 630 and 1600 - common auxiliaries
Time - lag (800 ms) Undervoltage release - Allow remote tripping of a DPX³/DPX³ - I 630 or 1600 - Prevents false tripping in the event of power supply microbreaksRelease - To be equipped with a time - lag module Cat.Nos 0 261 90/91 - For DPX³/DPX³ - I 630 and 1600

Rated control supply voltage DC (Min-Max)	24-24 V
Voltage type for actuating	DC
Type of electric connection	Screw connection
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
Number of contacts as change-over contact	0

Delayed	Yes
Suitable for power circuit breaker	Yes
Suitable for off-load switch	Yes
Suitable for motor safety switch	Yes
Suitable for overload relay	Yes

3 documents

Select all

Instruction Use

LE07103AD.pdf pdf (1.12 Mo)

Workshop Book

Workshop Book: DPX³ 125HP/160HP/250HP/630/1600 pdf (239.04 Mo)

Workshop Book

Cahier d'atelier : DPX³ 125HP/160HP/250HP/630/1600 pdf (239.32 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0184.pdf pdf (0.08 Mo)
