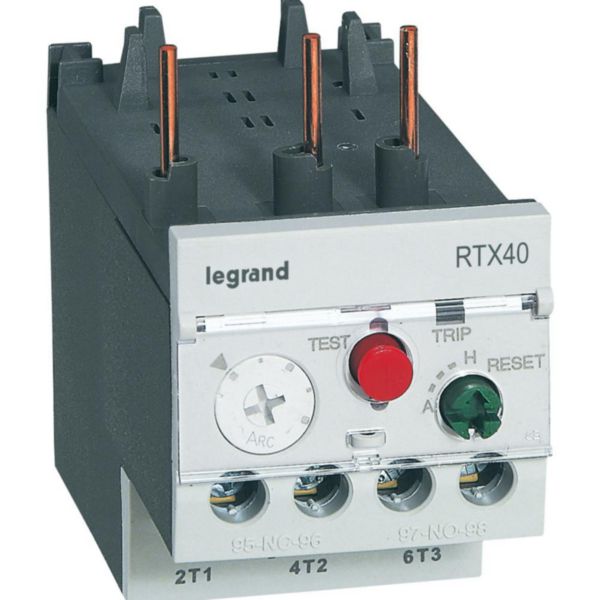

Name: Thermal overload relay RTX3 40 7-10A Class 10A
SKU: 416651

Thermal overload relay RTX3 40 7-10A Class 10A

RTX³ LEGRAND

Thermal overload relay RTX3 40 7-10A Class 10A

REF. 416651 EAN. 3414970405715

Compare You can only compare 4 products, you must remove 1 to add this one

1NO + 1NC Auxiliary contact (0,75A / 240V AC - 15)
Screw terminals capacity : Power 1mm² to 1,5mm² / Aux. Circuit 1mm²
Can be mounted independently with RTX3 separate mounting unit CatNo 416591
Reset button selector (automatic or manual reset), Trip indicator, Stop/Test button

Product specially designed for tertiary and industrial installations. Read the instructions before installing this product.

Adjustable current range	7-10 A
Max. rated operation voltage Ue	690 V
Mounting method	Direct attachment
Type of electrical connection of main circuit	Screw connection

Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as change-over contact	0
Release class	CLASS 10

Thermal overload relay RTX3 40 7-10A Class 10A
