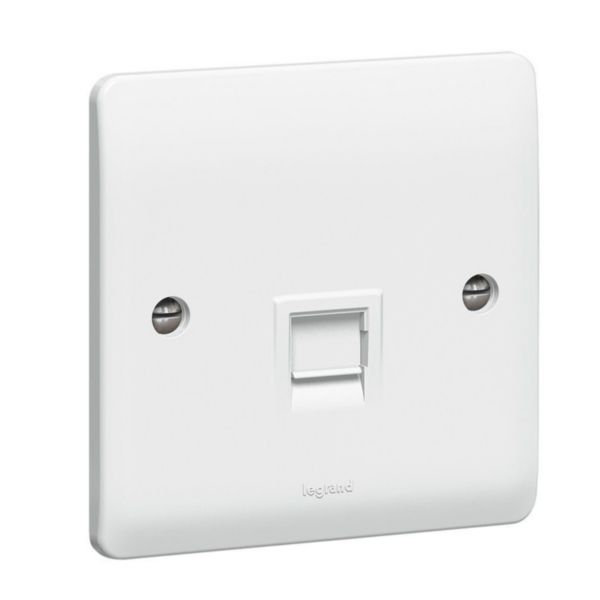

Synergy™ - Telephone socket - RJ 11/RJ 12 - single - White

Name: Synergy™ - Telephone socket - RJ 11/RJ 12 - single - White
SKU: 730054

Synergy™ LEGRAND

REF. 730054 EAN. 3245067300541

Compare You can only compare 4 products, you must remove 1 to add this one

Synergy - telephone, data and TV sockets - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximised wiring space - Supplied with faceplate screw caps
Telephone sockets - For flush-mounting, back box to be min. 35 mm deep - Nominal plate dimensions : 86 x 86 mm - RJ 11/RJ 12 single

Surface mounting	No
Duct installation	No
Floor box/subfloor mounted	No
Type of fastening	Screwing
Assembly arrangement	Basic element with central cover plate
Type of connector	Other
Category	3
Colour	White
RAL-number	9003
Connection type	Other
Shielded housing	No
Separate earthing connection	Yes
With label space	No
Separate strain relief	No

Mounting method shielding connection	None
Outlet direction	Straight
With dust cover	Yes
Degree of protection (IP)	IP21
Mechanical coding	No
Colour coding	No
Device width	86 mm
Device height	86 mm
Built-in depth	40 mm
degree of impact strength (IK)	IK04
Operating / setting temperature	5-45 °C
Storage temperature	-20-70 °C
Halogen free	Yes
Antimicrobial treatment	No

2 documents

Select all

Instruction Use

0064FV5-01.pdf pdf (0.18 Mo)

Technical Sheet

F00277EN-00.pdf pdf (0.16 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0718.pdf pdf (0.09 Mo)
