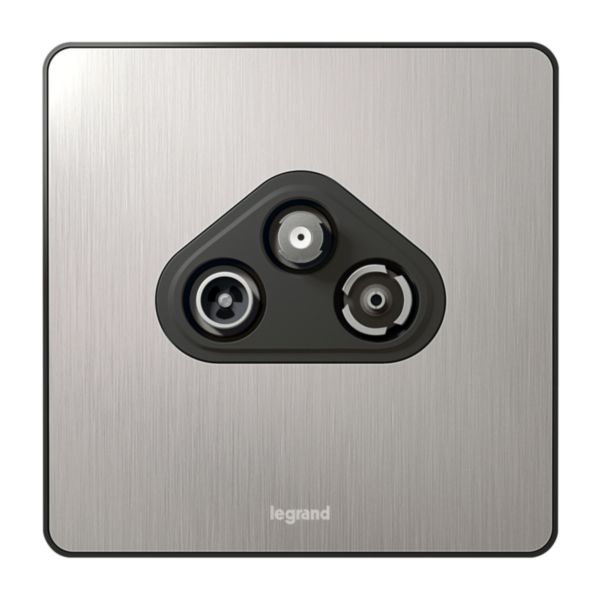

Synergy™ Sleek - TV-R-SAT socket - Brushed Stainless Steel

Name: Synergy™ Sleek - TV-R-SAT socket - Brushed Stainless Steel
SKU: 832043

Synergy™ LEGRAND

REF. 832043 EAN. 3414970660725

Compare You can only compare 4 products, you must remove 1 to add this one

TV : male diameter 9,5mm, R : female connector diameter 9,5mm, SAT : F type connector
Low attenuation 1dB max
Screwless cover plate is square 86x86 mm,product thickness is 4mm (once is installed onto the wall).
Complete product, cover plates are clipped onto the mechanism itself.

This TV socket has been designed for intuitive cable insertion. Connection to the terminal block is quick and easy. To allow easier delivery into the box, the terminal block has been placed in the center of the mechanism. Finally the visualization of the connection allows to know with certainty if the cable is well tightened

Plate in austenitic stainless steel Non magnetic Grade 304L
Class A certified shield: protects from interference caused by new signals used by mobile phones (3G, 4G, 5G). These unwanted signals can cause pixelation, image jamming and sound disturbances. Legrand uses the PKM laboratory for the certification of its class A TV sockets.
Delivered with screws for flush & surface boxes in both plastic and metal boxes

Model	End socket
Type of socket outlet	TV/RD/SAT
DAB+	Yes
Mounting method	Flush-mounted
Assembly arrangement	Basic element with full cover plate
Tap loss at 860 MHz	1.5 dB
Tap loss at 2150 MHz	2 dB
Number of outlets	3
Suitable for cable modem	No
Suitable for remote power supply	Yes
Radio frequency band	87.5-240 MHz

SAT frequency band	950-2400 MHz
Halogen free	Yes
Antimicrobial treatment	No
Degree of protection (IP)	IP21
degree of impact strength (IK)	IK04
Device width	86 mm
Device height	86 mm
Device depth	37 mm
Min. depth of built-in installation box	28 mm
Operating / setting temperature	5-45 °C
Storage temperature	-25-70 °C
