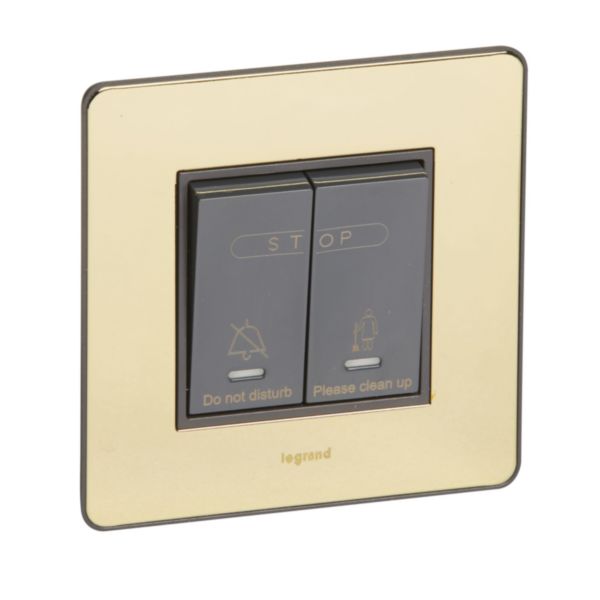

Synergy™ Sleek - Hotel call indicator internal room control - Glossy Gold

Name: Synergy™ Sleek - Hotel call indicator internal room control - Glossy Gold
SKU: 832502

Synergy™ LEGRAND

REF. 832502 EAN. 3414970663726

Compare You can only compare 4 products, you must remove 1 to add this one

230V~ 50/60Hz
To be used in conjunction with hotel bedroom call indicator
Screwless cover plate is square 86x86 mm,product thickness is 4mm (once is installed onto the wall).
Complete product, cover plates are clipped onto the mechanism itself.

Plate and rockers are made in the same Stainless Steel - Grade 430, with a chromium plating which bring a better rusting resistance and a nicer finish
Made in UK
Delivered with screws for flush & surface boxes in both plastic and metal boxes

Assembly arrangement	Basic element with full cover plate
Model	Other
Method of operation	Hotel card
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0
Contactless type	No
Number of rockers	2
Number of modules (module system)	2
Number of poles	1
Nominal voltage	250 V
Rated current	10 A
With lighting	Yes
With complemantary luminous signal	Yes
Monitoring contact	No
Connection type	Screwed terminal
Mounting method	Flush-mounted
Type of fastening	Screw mounting
Material	Metal
Material quality	Stainless steel
Halogen free	Yes
Antimicrobial treatment	No

Surface protection	Metallic
Surface finishing	Glossy
Colour	Gold
Transparent	No
Label space/information surface	No
Imprint	None
Suitable for degree of protection (IP)	IP2X
degree of impact strength (IK)	IK01
Device width	86 mm
Device height	86 mm
Device depth	42 mm
Min. depth of built-in installation box	40 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Built-in depth	27 mm
Operating / setting temperature	-5-40 °C
Storage temperature	-5-40 °C
Voltage type	AC
Frequency	50-60 Hz
Cable section	2.5-2.5 mm²
