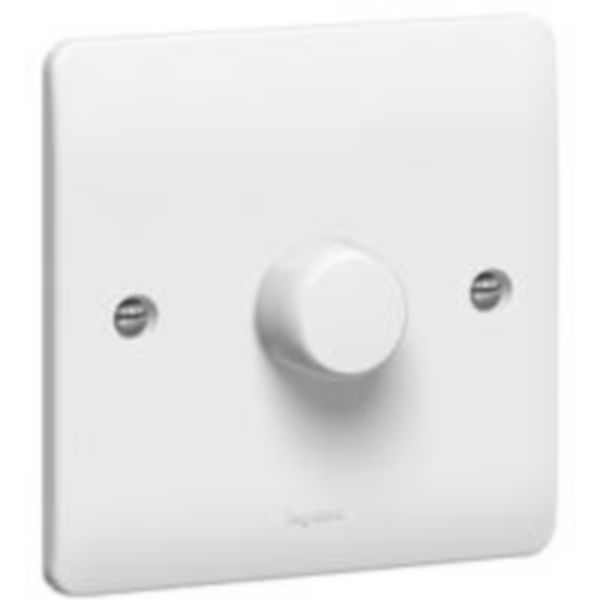

Synergy™ - Rotary dimmer - 1 gang - 2 way - 400 W- 100/240 V~ - 50/60 Hz - White

Synergy™ LEGRAND

Synergy™ - Rotary dimmer - 1 gang - 2 way - 400 W- 100/240 V~ - 50/60 Hz - White

REF. 730156 EAN. 3245067301562
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Synergy - single pole switches, single pole push and key switches, rotary dimmers - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximised wiring space - Supplied with faceplate screw caps
  • Push on/off rotary dimmers 400 W 100 - 240 V~ - 50/60 Hz - Conform to BS EN 60669 - 1 - For flush-mounting, back box to be min. 25 mm deep Nominal plate dimensions : 86 x 86 mm - 1 gang - 2 way

Technical characteristics

Assembly arrangement Basic element with full cover plate
Method of operation Turn/push button
App control via Bluetooth No
Serial dimmer Yes
Type of load Universal
Substation input Yes
Light value memory No
Applicable with button Yes
Applicable with movement sensor No
Applicable with presence indicator No
Applicable with time switch/timer No
Applicable with transmission button No
Applicable with infrared button No
Mounting method Flush-mounted
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Transparent No
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK02
Nominal voltage (Min-Max) 230-230 V
Frequency (Min-Max) 47-63 Hz
Control voltage (Min-Max) 90-245 V
Nominal power resistive load (Min-Max) 40-400 W
Connection type Screwed terminal
Cable section (Min-Max) 1.5-1.5 mm²
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) 0-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Stress test conformity (1000V) No

Documentation

1 document
Instruction Use
0064FU8-06.pdf pdf (0.44 Mo)
1 document
Catalogue Commercial Page
ex223001_0717.pdf pdf (0.07 Mo)
