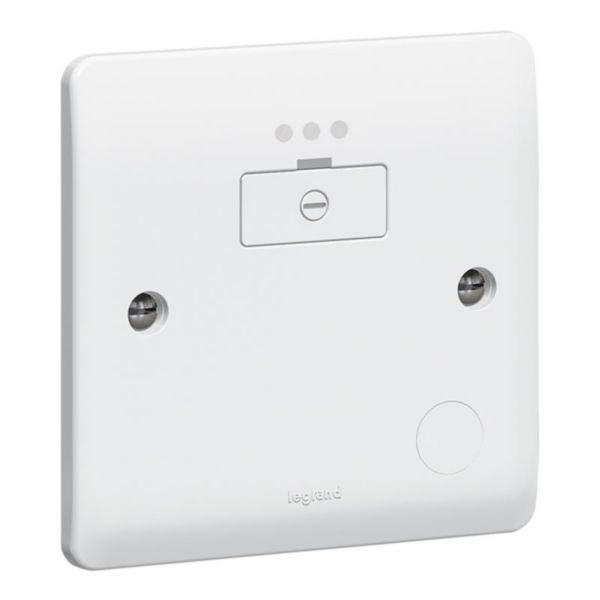

Synergy™ - Fused connection unit - unswitched + indicator - White

Name: Synergy™ - Fused connection unit - unswitched + indicator - White
SKU: 730033

Synergy™ LEGRAND

REF. 730033 EAN. 3245067300336

Compare You can only compare 4 products, you must remove 1 to add this one

Synergy - cooker control units, fused connection units and cable outlets - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximised wiring space - Supplied with faceplate screw caps
Fused connection units 13 A - 250 V~ - Conform to BS 1363 : Part 4 - Fused 13 A (fuse supplied) - Front cable outlet with cord grip - Locked captive fuse carrier (padlockable) - For flush-mounting, back box to be min. 25 mm deep - Nominal plate dimensions : 86 x 86 mm Unswitched - With red LED power indicator - LED invisible until activated

Built-in depth	22 mm
degree of impact strength (IK)	IK01
Degree of protection (IP)	IP20
Operating / setting temperature	-5-40 °C
Storage temperature	-5-40 °C
Colour	White
Antimicrobial treatment	No
Cable section	6-6 mm²
