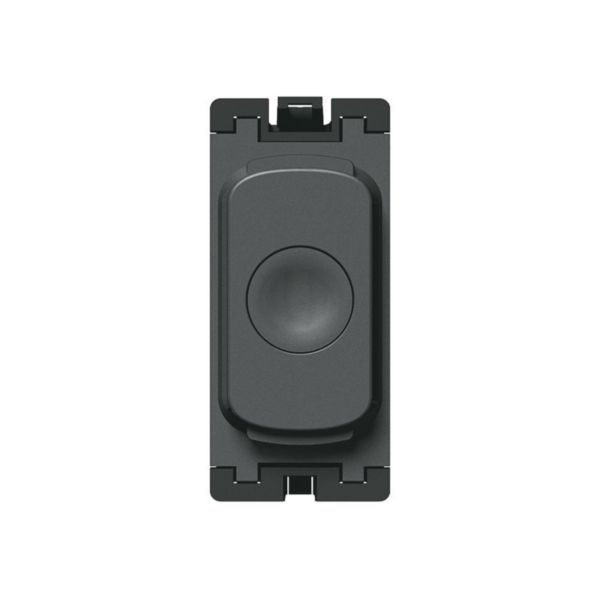

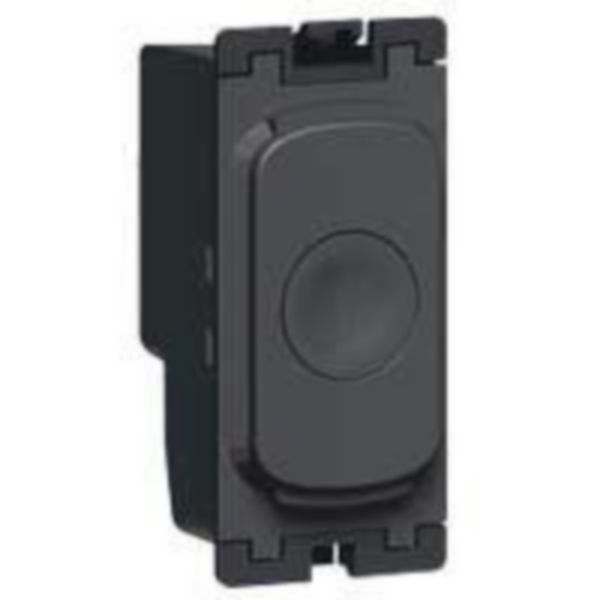

Synergy™ - Dimmer Grid module - push dimmer - 2 way - 300 W - Anthracite

Name: Synergy™ - Dimmer Grid module - push dimmer - 2 way - 300 W - Anthracite
SKU: 735546

Synergy™ LEGRAND

REF. 735546 EAN. 3245067355466

Compare You can only compare 4 products, you must remove 1 to add this one

Dimmers 100 - 240 V~ - 50 - 60 Hz - Conform to BS EN 60669 - 2 - 1 - Anthracite - 2 - way - 300 W - push dimmer

Assembly arrangement	Basic element
Method of operation	Touch control button
App control via Bluetooth	No
Serial dimmer	Yes
Type of load	Inductive load
Substation input	Yes
Light value memory	Yes
Applicable with button	Yes
Applicable with movement sensor	No
Applicable with presence indicator	No
Applicable with time switch/timer	No
Applicable with transmission button	No
Applicable with infrared button	No
Mounting method	Flush-mounted
Type of fastening	Click in mounting
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Matt
Colour	Grey

RAL-number (similar)	7016
Transparent	No
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK01
Nominal voltage	200-240 V
Frequency	47-63 Hz
Control voltage	200-240 V
Nominal power resistive load	40-300 W
Connection type	Screwed terminal
Device width	25.5 mm
Device height	57.5 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Operating / setting temperature	5-35 °C
Voltage type	AC
Mandatory neutral	No
Terminal marking indication	Yes
Stress test conformity (1000V)	No
Antimicrobial treatment	No
