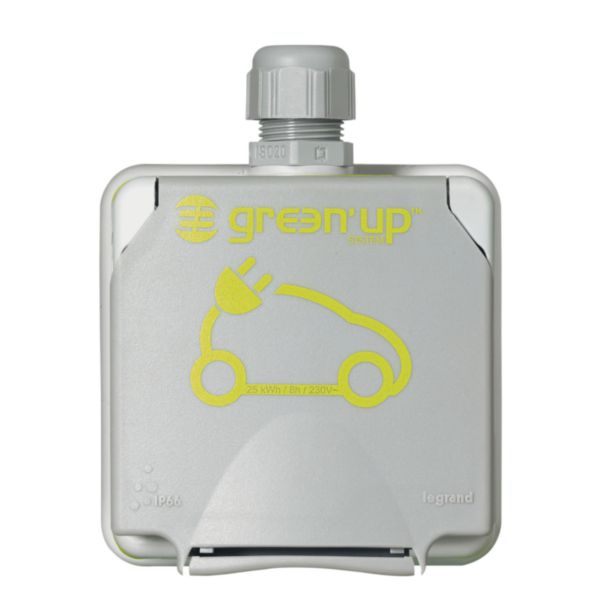

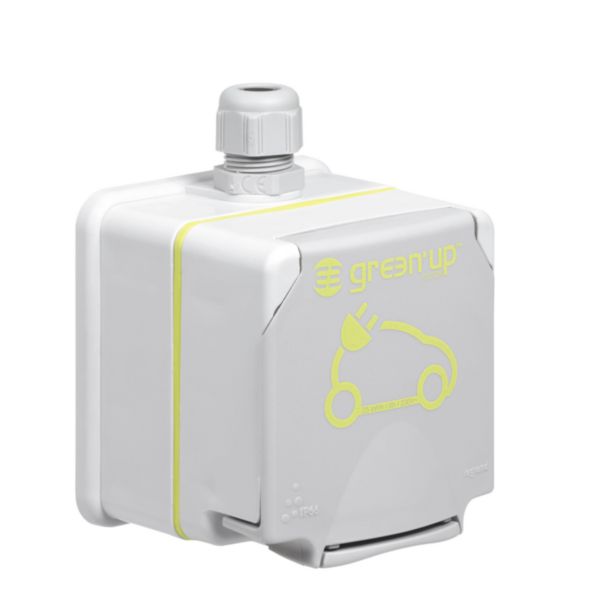

Name: Surface mounting socket Green'up Access - IP66-IK08 - German standard
SKU: 090472

Surface mounting socket Green'up Access - IP66-IK08 - German standard

LEGRAND

Surface mounting socket Green'up Access - IP66-IK08 - German standard

REF. 090472 EAN. 3245060904722

Compare You can only compare 4 products, you must remove 1 to add this one

Green'up Access sockets 16 A - 230 V - 16 A EV - for electric vehicles - Used for safely charging rechargeable electric and hybrid vehicles which take Mode 2 cord (compatible with Mode 1) - Connected to the consumer panel via one 3 x 2.5 mm ² dedicated line (1 line per socket) protected by 30 mA - 20 A C curve, type A or Hpi RCBO (or 30 mA type A or HPi RCCB + 20 A C curve circuit breaker) - Recomm ended installation height : 1.30 m from the floor - Suitable for residential and workplace use

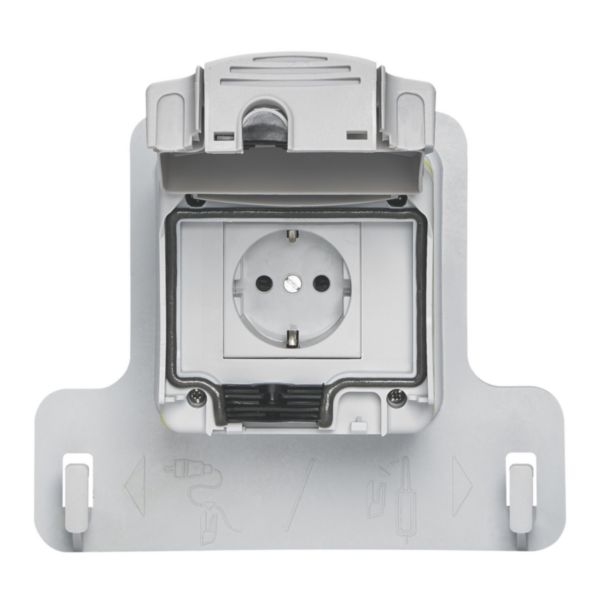

Mode 1 and Mode 2 sockets - 16 A EV - Heavy - duty mechanisms with silvered contacts - single-phase sockets - screw connection - 230 V - Supplied with base Cat.No 0 904 78 for hanging up the vehicle charging cable control box - For charging 1 vehicle - Conform to IEC 60 - 884 - 1IP 55 - IK 08 surface - mounting - Suitable for installation In =rivate houses - Plastic socket with flap cover - Supplied complete with surface mounting box fitted with an ISO 20 cable gland - Dimensions (H x W x D) : 98 x 98 x 70 mm (exc. cable gland) - German standard socket outlet

Nominal voltage	250 V
Max. nominal current	16 A
Type of current	AC single phase
Number of communication contacts	3
Length of the fixed connection cable	50 m
LED integrated	No
Cross section of the power contacts (Min-Max)	6-6 mm²
Operating / setting temperature (Min-Max)	-25-40 °C
Storage temperature (Min-Max)	-25-70 °C
