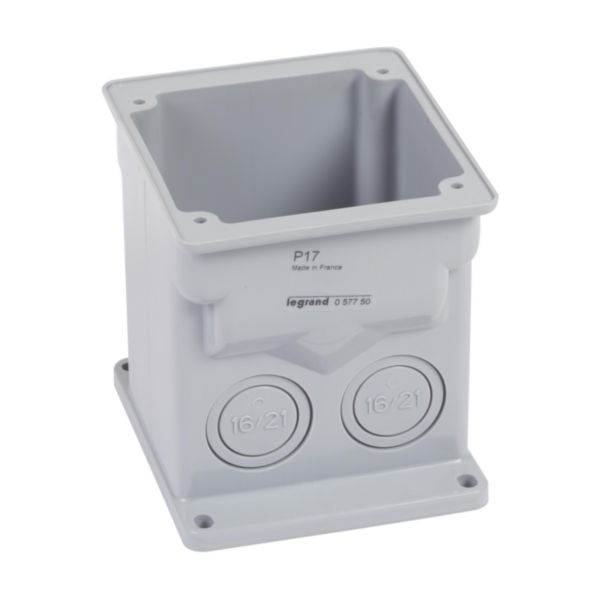

Surface mounting box for one 16 A or 32 A P17 Tempra panel mounting socket with inclined outlet

Name: Surface mounting box for one 16 A or 32 A P17 Tempra panel mounting socket with inclined outlet
SKU: 057750

LEGRAND

REF. 057750 EAN. 3414971054721

Compare You can only compare 4 products, you must remove 1 to add this one

P 17 Tempra - domestic pin configuration 16 A - 250 V~
Surface mounting boxes - IP 55 - For installation of the panel mounting sockets IP 44 or IP 66/67 - For one 16 A or 32 A panel mounting socket with inclined outlet ( Fixing centres 70x70 mm) Cat.Nos 0 552 45/95, 5 551 84/85/86/88/89 and 5 552 84/85/86/88/89

CEE socket outlet 16 A	None
CEE socket outlet 32 A	None
CEE socket outlet 63 A	None
CEE socket outlet 125 A	None
Number of socket outlets with protective contact CEE 7/3 (type F)	0
Protection	None
Earth leakage switch	None
Number of miniature circuit breakers (MCB)	0
Housing material	Plastic

Power supply/connection possibility	Other
Type of mains connection	Other
Handling	Wall mounting
Degree of protection (IP)	Other
Military model	No
Colour	Grey
Height	97 mm
Width	87 mm
Depth	97 mm

1 document

Select all

Technical Sheet

F00140EN-05.pdf pdf (1.34 Mo)

2 documents

Select all

Catalogue Commercial Page

ex223001_0526.pdf pdf (0.13 Mo)

Catalogue Technical Page

ex223001_0531.pdf pdf (0.06 Mo)
