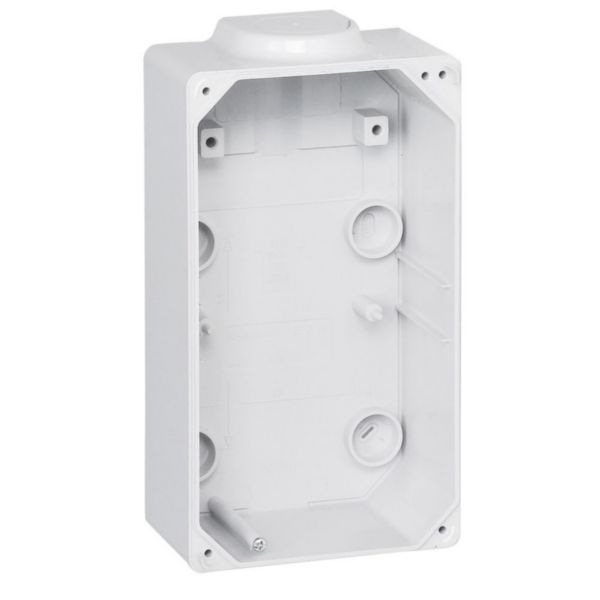

Surface mounting box for combined unit P17 - 220 x 125 mm

Name: Surface mounting box for combined unit P17 - 220 x 125 mm
SKU: 057710

P 17 Tempra LEGRAND

REF. 057710 EAN. 3245060577100

Compare You can only compare 4 products, you must remove 1 to add this one

P17 Tempra combined units to be composed - IK 08 according to IEC 62262 - Self - extinguishing : 650 °C - Max. IP 66 Combined units height 220 mm to 441 mm Base for 220 x 125 mm faceplates - max. IP 66 - Surface - mounting box - External dimensions (Height x Width) : 220 x 125 mm

CEE socket outlet 16 A	None
CEE socket outlet 32 A	None
CEE socket outlet 63 A	None
CEE socket outlet 125 A	None
Number of socket outlets with protective contact CEE 7/3 (type F)	0
Protection	None
Earth leakage switch	None
Number of miniature circuit breakers (MCB)	0
Housing material	Plastic

Power supply/connection possibility	Other
Diameter cable entry	M32
Handling	Wall mounting
Degree of protection (IP)	Other
Military model	No
Colour	Grey
Height	220 mm
Width	125 mm
Depth	76.5 mm

2 documents

Select all

Technical Sheet

F00140FR-05.pdf pdf (1.34 Mo)

Technical Sheet

F00140EN-05.pdf pdf (1.34 Mo)

1 document

Select all

3D Autocad

057710.dwg dwg (0.08 Mo)
