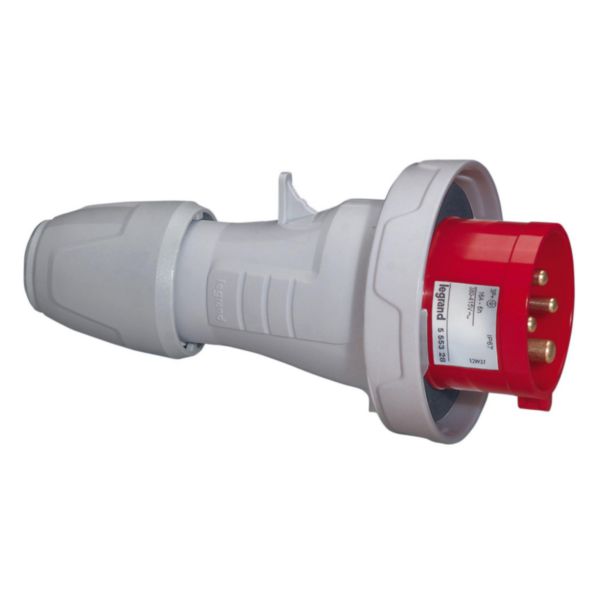

Straight plug P17 - IP66/67 - 380/415 V~ - 16 A - 3P+E

P 17 Tempra LEGRAND

Straight plug P17 - IP66/67 - 380/415 V~ - 16 A - 3P+E

REF. 555328 EAN. 3245065553284
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • P 17 Tempra Pro IP 66/67 LV 16 and 32 A Straight plugs - Supplied unlocked 380/415 V~ - 16 A - 3P+E
Recommendation / Restriction
  • Not suitable for charging electric vehicles

Technical characteristics

IEC-amperage 16 A
Number of poles 4
Voltage according to EN 60309-2 380-415 V (50+60 Hz) red
Clock hour position 6 h
Identification colour Red
RAL-number 3000
Phase inverter No
Degree of protection (IP) IP67
Connection system Screwed terminal
Cable entry Gland nut
Insert direction Straight
Material Plastic
Military model No
