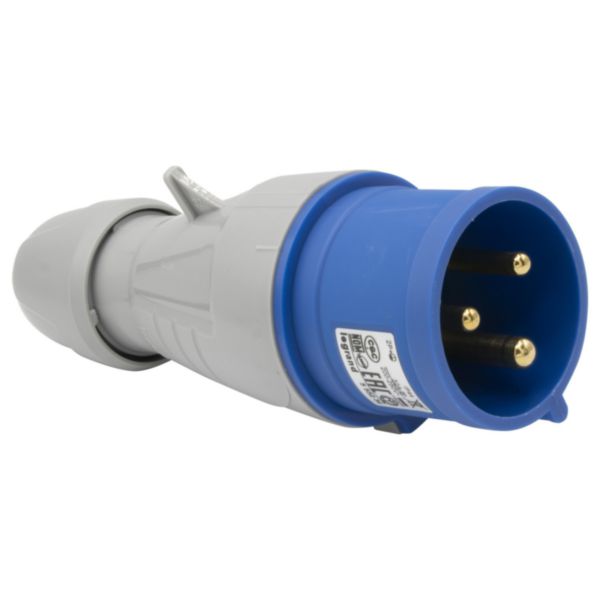

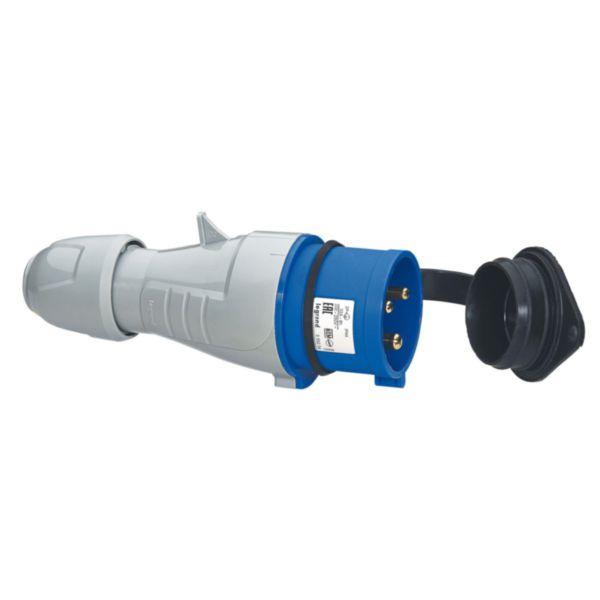

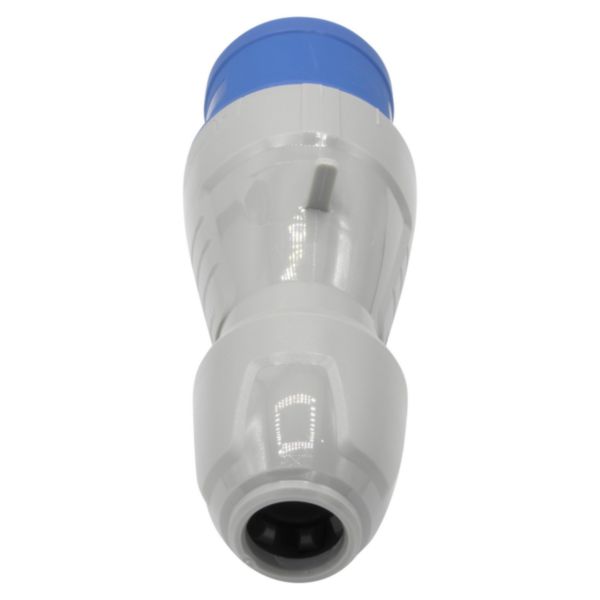

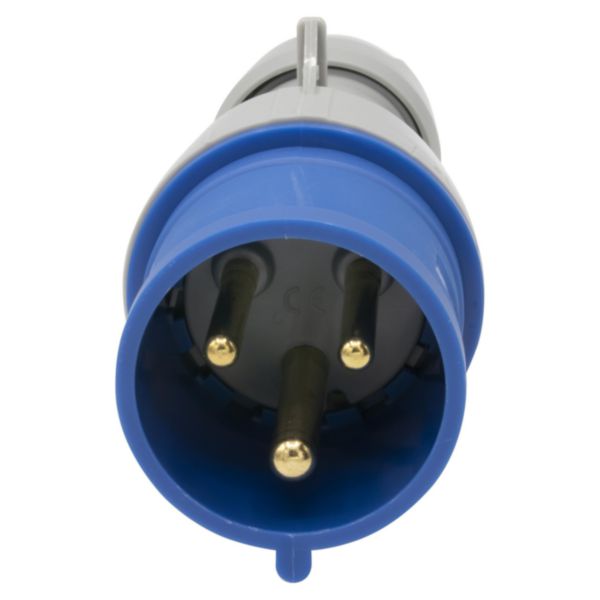

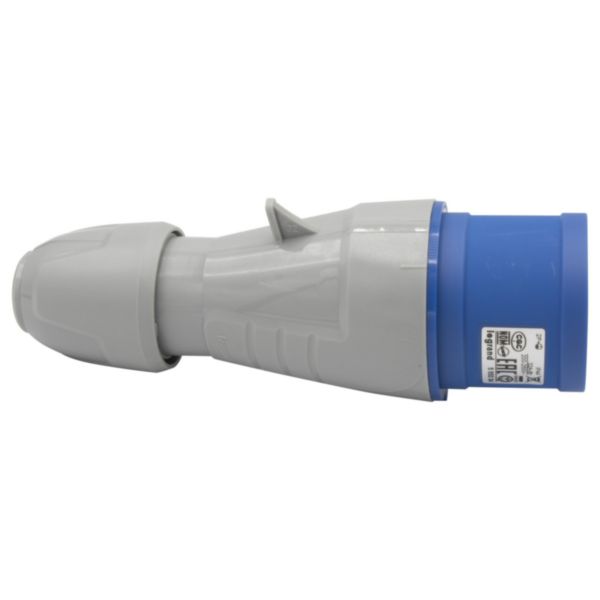

Straight plug P17 - IP44 - 200/250 V~ - 32 A - 2P+E

P 17 Tempra LEGRAND

Straight plug P17 - IP44 - 200/250 V~ - 32 A - 2P+E

REF. 555234 EAN. 3245065552348

Download product sheet

Compare You can only compare 4 products, you must remove 1 to add this one

Description
Documentation
You might also need

Product characteristics

P 17 Tempra Pro IP 44 - LV 16 and 32 A - sockets , plugs , mobile sockets , appliance inlets and interlocked switched sockets Straight plugs - Cable clamping and closing without screws - Supplied unlocked 200/250 V~ - IP 44 32 A - 2P+E

Recommendation / Restriction

Not suitable for charging electric vehicles

Technical characteristics

IEC-amperage	32 A
Number of poles	3
Voltage according to EN 60309-2	200-250 V (50+60 Hz) blue
Clock hour position	6 h
Identification colour	Blue
RAL-number	5005
Phase inverter	No

Degree of protection (IP)	IP44
Connection system	Screwed terminal
Cable entry	Gland nut
Insert direction	Straight
Material	Plastic
Military model	No
