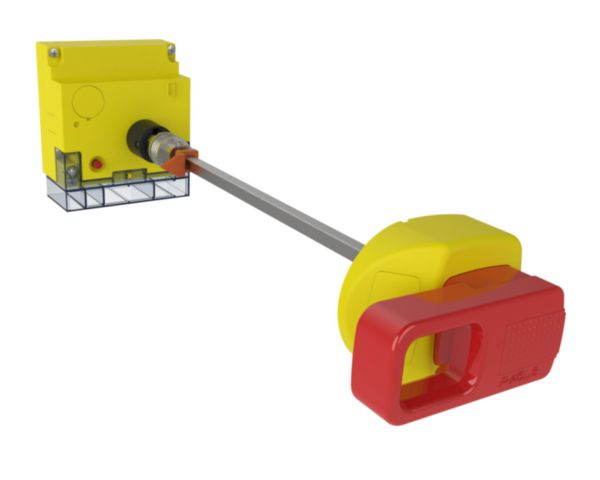

Standard vari-depth handle for DPX³ 250 HP devices

Name: Standard vari-depth handle for DPX³ 250 HP devices
SKU: 423803

DPX³ 250 HP LEGRAND

REF. 423803 EAN. 3414971232341

Compare You can only compare 4 products, you must remove 1 to add this one

Must be mounted far from the device, in order to open/close it with switchboard board closed
Emergency version in red/yellow color.
Has signal contacts for auxiliaries
Indication of 3 working positions
Lockable with specific accessory

Colour	Red/yellow
Suitable for emergency stop	No
With extension shaft	Yes
Suitable for power circuit breaker	Yes
Suitable for switch disconnector	Yes
Width	110 mm

Height	122 mm
Depth	431 mm
Operating / setting temperature (Min-Max)	-5-70 °C
Storage temperature (Min-Max)	-25-85 °C
Halogen free	Yes

3 documents

Select all

Workshop Book

Workshop Book: DPX³ 125HP/160HP/250HP/630/1600 pdf (239.04 Mo)

Instruction Use

LE11584AA.pdf pdf (5.41 Mo)

Workshop Book

Cahier d'atelier : DPX³ 125HP/160HP/250HP/630/1600 pdf (239.32 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0174.pdf pdf (0.16 Mo)

1 document

Select all

3D Autocad

423803.dwg dwg (0.15 Mo)
