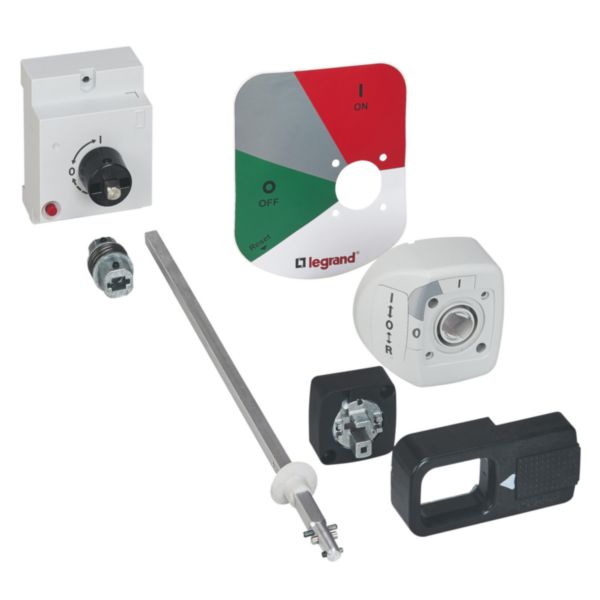

Standard vari-depth handle for DPX³ 125 HP devices

Name: Standard vari-depth handle for DPX³ 125 HP devices
SKU: 423872

DPX³ 125 HP LEGRAND

REF. 423872 EAN. 3414971730359

Compare You can only compare 4 products, you must remove 1 to add this one

Must be mounted far from the device, in order to open/close it with switchboard board closed
Standard version (no emergency) in black color.
Has signal contacts for auxiliaries
Indication of 3 working positions(ON, OFF, tripped)
Lockable with specific accessory

Colour	Grey
Suitable for emergency stop	No
Suitable for power circuit breaker	Yes
Suitable for switch disconnector	Yes
Width	105 mm

Height	115 mm
Depth	431 mm
Operating / setting temperature (Min-Max)	-5-70 °C
Storage temperature (Min-Max)	-25-85 °C
Halogen free	Yes

3 documents

Select all

Instruction Use

LE11582AA.pdf pdf (3.59 Mo)

Workshop Book

Workshop Book: DPX³ 125HP/160HP/250HP/630/1600 pdf (239.04 Mo)

Workshop Book

Cahier d'atelier : DPX³ 125HP/160HP/250HP/630/1600 pdf (239.32 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0169.pdf pdf (0.1 Mo)

1 document

Select all

3D Autocad

423872.dwg dwg (0.12 Mo)
