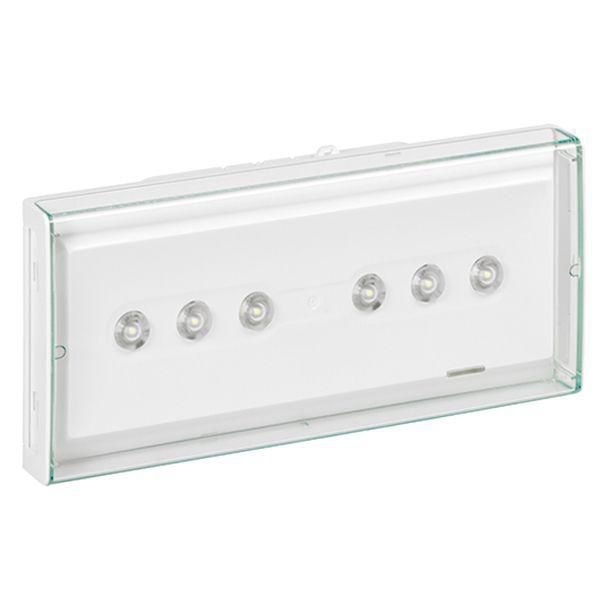

Standard luminaires U34 LED - 3h duration with opal diffuser - 200 lm

LEGRAND

Standard luminaires U34 LED - 3h duration with opal diffuser - 200 lm

REF. 661190 EAN. 3245066611907
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • U34LED environment friendly - indoor self - contained emergency lighting luminaires LED - LED Maintained/non-maintained units - High power LEDs with specially designed lenses optimizing the lighting distribution - IP 42 - IK 07 - Class II - Power supply : 230 V ± 10% - 50/60 Hz - Very low consumption switching power supply - Fully recyclable after removing - Environment friendly Ni - MH batteries - Removable plug - in plate to ease installation and maintenance - Automatic terminals with high capacity : 2 x 2.5 mm ² - Charge monitor with a green LED - Can be equipped with metallic protection grids Cat.Nos 0 626 92/93
  • Standard luminaires - Maintained/non-maintained (M/NM) - Standard luminaires incorporate an external manual lamp test with testing tool Cat.No 6 612 991 h duration with transparent diffuser - 200 lm - 3h (LEDs)

Technical characteristics

Mounting method Wall surface mounted
Function Escape route lighting/signage
Suitable for labelling type Sticker
Type of indicator Single-sided
With pictogram No
Suitable for continuous circuit Yes
With remote switch connection No
Supplied remote control No
Emergency function monitoring system None
Emergency power supply system Peripheral (individual battery)
Battery technology NiMH
Lamp type LED not exchangeable
With light source Yes
Lamp holder Other
Number of lighting heads 1
Housing material Plastic
Housing colour White
Material cover Plastic, transparent
Voltage type AC
Nominal voltage (Min-Max) 230-230 V
Type of control gear LED operating device current-controlled
Light distributor Diffuser lens/optic/panel
Rated lifetime L70/B50 at 25 °C 147000 h
Degree of protection (IP) IP42
degree of impact strength (IK) IK07
Protection class according to IEC 61140 II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No
Luminous flux in emergency mode 200 lm
Rated luminous flux according to IEC 62722-2- 1 (Min-Max) 200-200 lm
Max. system power 20 W
Luminous flux in standby mode 120 lm
Nominal operation time (Min-Max) 3-3 h
Width 125 mm
Height/depth 55 mm
Length 285 mm
Number of poles 5
Conductor cross section 2.5 mm²
Connection type Screw connection
Connectable conductor cross section (Min-Max) 1.5-2.5 mm²
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-50 °C
Frequency (Min-Max) 50-60 Hz
Mandatory neutral Yes
Terminal marking indication Yes
Halogen free Yes
Cable nature for connection Flexible or rigid
Cable support Not applicable
Cable tie suitable with Not applicable
Control mode Wired
Contains Batteries Yes
Addressable No
Number of batteries (Type 1) 2
IEC code (Type 1) Cs
Battery ou Accumulator (Type 1) Accumulator (rechargeable)
Battery Composition (Type 1) Rechargeable - Nickel-Metalhydride
Battery Location (Type 1) Product includes a battery
Regulation Type (Type 1) I : Industrial (not Portable)
Connected object No
Battery weight (g) for Type 1 53 g
Number of Single Element (Pack1) 3
