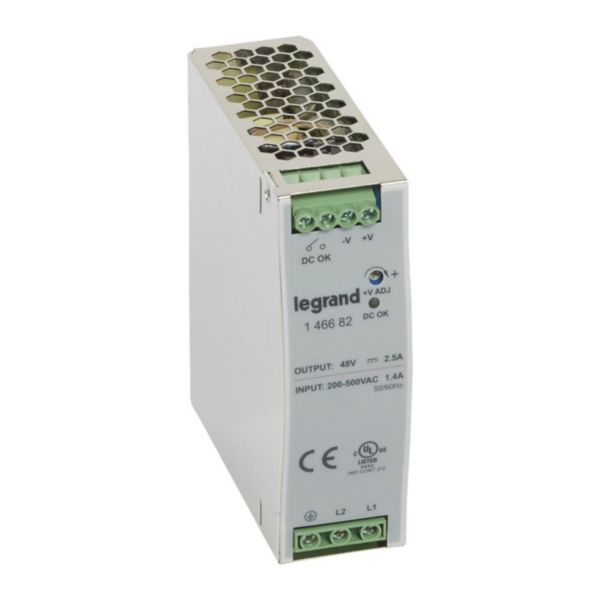

Stabilized switching power supply mono/bi-switching - 120-480 W - output 48 V= - 120 W

- LEGRAND

Stabilized switching power supply mono/bi-switching - 120-480 W - output 48 V= - 120 W

REF. 146682 EAN. 3414970543578
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Stabilised switched mode power supplies - single/two - phase and three - phase - Conforming to standards UL 508, IEC EN 60950 - 1 and IEC EN 61204 - 3 - UL - approved in USA (and Canada for Cat. Nos. 1 466 54/63/82) - Operating frequency : 50/60 Hz - Output voltage present indicator - Potentiometer for adjusting the output voltage on front panel - Integrated short - circuit and overload protection - With signal or relay contact for feedback on the status of the active output voltage - Connection with copper conductors only - For mounting on a symmetrical rail depth 7.5 mm and 15 mm
  • Single/two - phase 120 - 480 W wide input voltage range - Suitable for single or two - phase networks - Also suitable for three - phase networks, when using 2 phases only - Low harmonic pollution due to the integrated PFC filter (from 240 W) - Adjustable output voltage - Aluminium casingInput voltage : 200 to 500 V~ Output voltage : 48 V - Nominal power : 120 W - Nominal rating : 2.5 A - Setting range : 48 to 58 V - Width : 40 mm

Technical characteristics

Voltage type (supply voltage) AC/DC
1st secondary output voltage 24-48 V
Max. output current 1 2.5 A
Secondary voltage adjustable Yes
Nominal value output voltage 1 24 V
Nominal value output current 1 2.5 A
Short-circuit-proof Yes
Rated supply voltage AC 50 Hz 200-500 V
Rated supply voltage AC 60 Hz 200-500 V
Rated supply voltage DC 254-780 V
Output voltage stabilized Yes
Power output 120 W
Stabilized Yes
Type of electric connection Screw connection
Rail mounting possible Yes
Wall mounting possible No
Modular version No
Built-in width 40 mm
Direct mounting possible Yes
Width 40 mm
Height 125 mm
Depth 113 mm
Suitable for safety functions Yes
Operating / setting temperature -25-60 °C
Frequency 50-60 Hz
Electric supplying direction From the bottom
Terminal marking indication Yes
Terminals capacity 4-4 mm²
Label space/information surface FALSE
