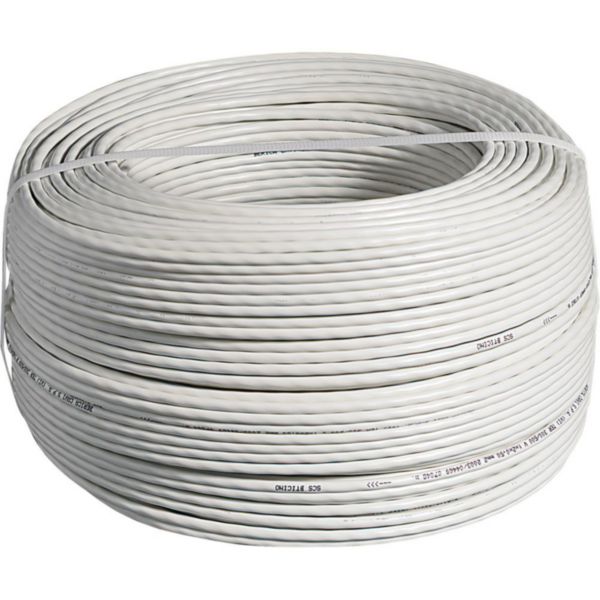

Specific BUS/SCS cable, unshielded.

Name: Specific BUS/SCS cable, unshielded.
SKU: 336904

Bticino

REF. 336904 EAN. 8012199654362

Compare You can only compare 4 products, you must remove 1 to add this one

Conductor material	Copper
Conductor surface	Bare
Nominal cross section conductor	0.5 mm²
AWG size	20
Nominal cross section conductor (AWG)	20 kcmil
Diameter conductor	1.7 mm
Conductor category	Class 2 = stranded
Number of cores	2
Twisted cores	Yes
Material core insulation	Other
Specification core insulation	Other
Core identification	Colour
Core colour	White
With protective conductor	No
Max. permitted conductor temperature	70 °C
Screen	No
Drain wire	No

Protective barrier	None
Armouring/reinforcement	None
Material outer sheath	Polyvinyl chloride (PVC)
Specification material outer sheath	Polyethylene (PE)
Colour outer sheath	White
Low smoke according to EN IEC 61034-2	No
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Oil resistant according to EN IEC 60811-404	No
Low temperature resistant according to EN 60811-504+505+506	Yes
Outer diameter approximate	4.8 mm
Permitted cable outer temperature during assembling/handling (Min-Max)	-15-70 °C
Permitted cable outer temperature after assembling without vibration (Min-Max)	-15-70 °C
Nominal voltage U0	400 V
Nominal voltage U	400 V
Storage temperature (Min-Max)	-15-70 °C
