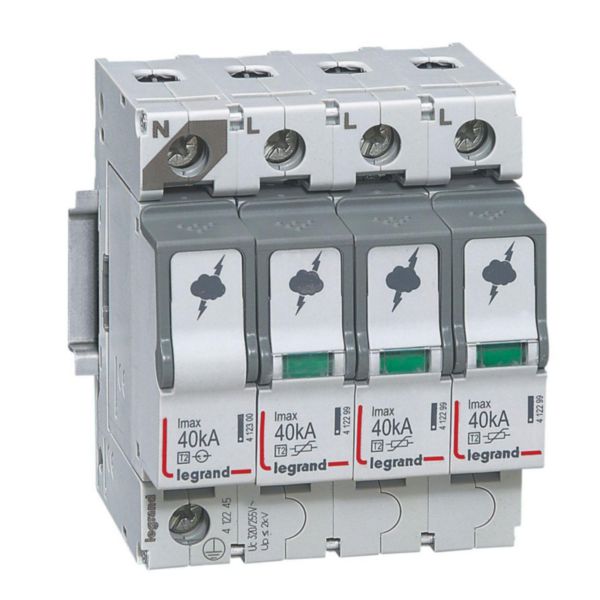

Name: SPD - T2 - Imax 40 kA/pole - 3P+N - neutral on left-hand side
SKU: 412245

SPD - T2 - Imax 40 kA/pole - 3P+N - neutral on left-hand side

LEGRAND

SPD - T2 - Imax 40 kA/pole - 3P+N - neutral on left-hand side

REF. 412245 EAN. 3414970517722

Compare You can only compare 4 products, you must remove 1 to add this one

Class II (T2) low voltage SPDs - Protection against transient overvoltagess for 230/400 V~ power networks (50/60 Hz). SPDs compliant with EN/IEC 61643 - 11 standards - Recommended for distribution boards
T2 SPDs - SPDs with plug-in modules and status indicators : - Green : SPD operational - Orange : plug-in modules to be replacedT2 - Imax 40 kA/pole - SPDs recommended for power installations - Up : 1.7 kV - In = 20 kA/pole - Uc : 320 V~ - Earthing systems : TT, TNC, TNS - Recommended MCB : DX³ 25 A - C curve - 1P+N and 3P+N : L - N and N - PE protection modes (common and differential modes) , the N pole being protected by encapsulated spark gaps. Also called 1+1 and 3+1 - Number of poles : 3P+N - Neutral position : Left - Remote status monitoring (FS contact) : No - Number of modules : 4

System configuration DC	No
System configuration IT	No
System configuration TN	Yes
System configuration TN-C	Yes
System configuration TN-C-S	Yes
System configuration TN-S	No
System configuration TT	Yes
System configuration other	No
Number of conductors (without earthing)	4
Nominal discharge surge current In (8/20)	20 kA
Max. discharge surge current (8/20)	40 kA
Nominal voltage AC	400 V
Max. continuous voltage AC	320 V
Voltage protection level L-N	1.7 kV
Voltage protection level N-PE	1.5 kV

Integrated backup fuse	No
Mounting method	DIN rail (top hat rail) 35 mm
Construction size	4 modular spacing
Max. conductor cross section solid (solid, stranded)	35 mm²
Max. conductor cross section flexible (fine-strand)	25 mm²
With remote signalling contact	No
Signalling at the device	Optical
Category type 2	Yes
Degree of protection (IP)	IP20
Width	70.8 mm
Height	97.2 mm
Depth	76.5 mm
degree of impact strength (IK)	IK04
Terminal marking indication	Yes
Connection type	Screwed terminal , Cable
