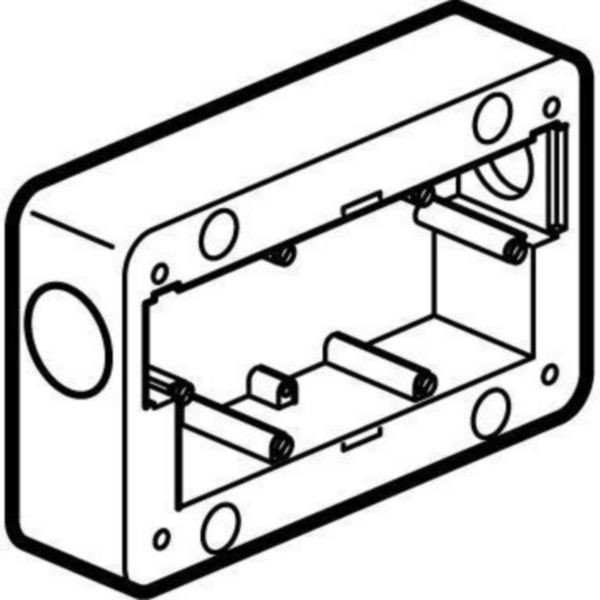

Name: Soliroc™ - Surface mounting box - 2 gang - 110 x 181 x 45 mm
SKU: 077892

Soliroc™ - Surface mounting box - 2 gang - 110 x 181 x 45 mm

Soliroc™ LEGRAND

Soliroc™ - Surface mounting box - 2 gang - 110 x 181 x 45 mm

REF. 077892 EAN. 3245060778927

Compare You can only compare 4 products, you must remove 1 to add this one

Surface - mounting boxes - Cannot be used for Cat.Nos 0 778 74/75 - Supplied with 4 blanking plugs - Take ISO 20 protective conductors - 2-gang - 110 x 181 x 45 mm - Horizontal or vertical mounting - 71 mm fixing centres

Assembly arrangement	Surface mounted frame
Suitable for modular domestic switching devices	No
Number of modules (module system)	1
Number of units	1
Mounting direction	Horizontal and vertical
Shape	Rectangular
Material	Plastic
Material quality	Other
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Matt
Colour	Grey
Transparent	No

With cover frame	No
With duct entry	Yes
With cable entry	Yes
With screw gland entry	Yes
Shock resistant	Yes
Degree of protection (IP)	IP55
Width	181 mm
Height	110 mm
Depth	45 mm
degree of impact strength (IK)	IK10
Operating / setting temperature	-5-40 °C
Storage temperature	-10-70 °C
