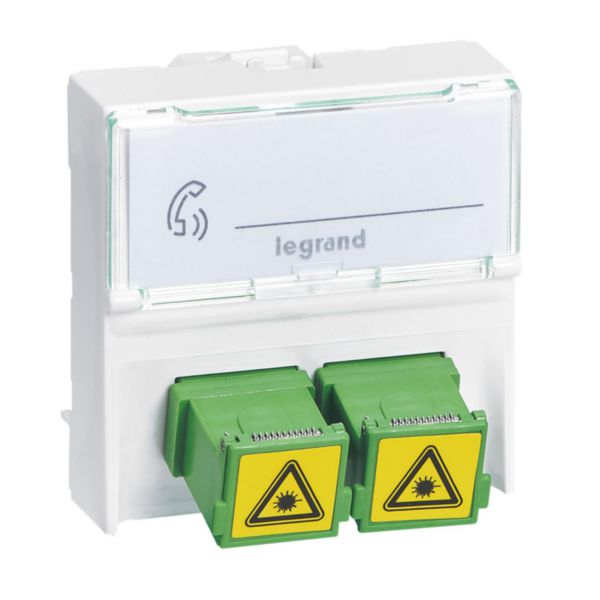

Socket with fibre optic feedthrough - 2 x SC/APC - with shutters - white

Mosaic™ LEGRAND

Socket with fibre optic feedthrough - 2 x SC/APC - with shutters - white

REF. 078614 EAN. 3245060786144
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Mosaic Programme mechanisms - data sockets
  • Optical sockets - 2 modules - For connecting 2 fibres to the workstation - Equipped with 1 duplex adaptor - Supplied with protective caps - White

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted Yes
Type of fastening Engage (snap)
Type of connector SC
Colour Green
Centre plate No
With cover frame No
With label space Yes
With strain relief No
Wire stock No
Outlet direction Downwards
Dust protection cap Hinged lid
Device width 45.05 mm
Device depth 29.5 mm
Device height 45 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP21
Operating / setting temperature -40-85 °C
Storage temperature -40-85 °C
Antimicrobial treatment No
Label space/information surface Yes

Documentation

3 documents
Technical Sheet
F01280EN-03.pdf pdf (0.53 Mo)
Instruction Use
0064KC9-02.pdf pdf (1.16 Mo)
Technical Sheet
F01280FR-03.pdf pdf (0.53 Mo)
4 documents
Catalogue Commercial Page
ex223001_0876.pdf pdf (0.1 Mo)
Catalogue Commercial Page
ex223001_0874.pdf pdf (0.07 Mo)
Catalogue Commercial Page
ex223001_1190.pdf pdf (0.1 Mo)
Catalogue Commercial Page
ex223001_1005.pdf pdf (0.18 Mo)
