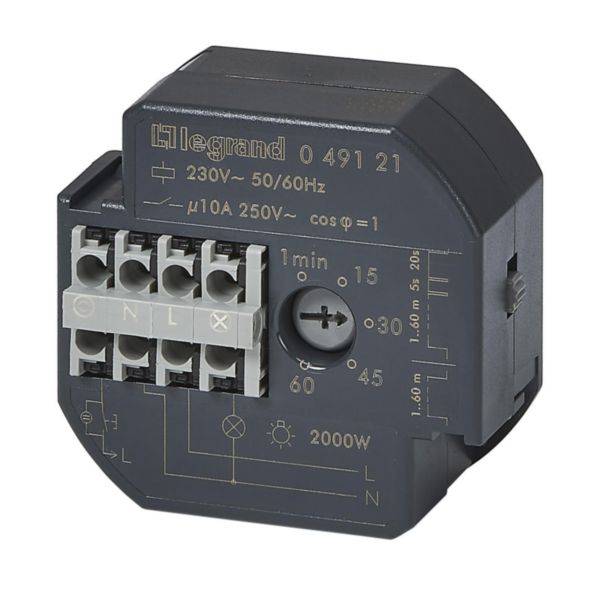

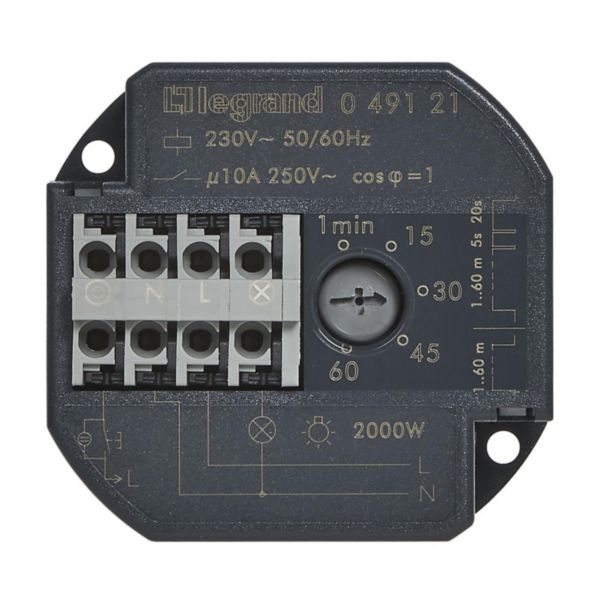

Single pole latching relay - silent - 10 A - surface-mounting - with timer

CX³ LEGRAND

Single pole latching relay - silent - 10 A - surface-mounting - with timer

REF. 049121 EAN. 4010957491215
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Pulse operated latching relays CX³ Surface mounting pulse operated latching relays - 10 A - 230 V~ - 50/60 Hz - Suitable for new installations or retrofitting of existing ones - Compatible with electronic ballasts and fluocompact lamps - Mounting on plate or in flush-mounting boxes Ø 67 mm - Equipped with automatic terminals for flexible or rigid wires (max. 2.5 mm ) - Power : min. 7 W / max. 2300 W - IP 20 - IK 04 - Dimensions : 49 x 46 x 26 mm - Maximum current when used with illuminated push - buttons : 50 mANoiseless - Single pole with timer - Enables energy savings by switching off lighting after a specified period - Time delay adjustment from 1 to 60 min. - Switch - off pre - warning function (can be disabled)

Technical characteristics

Function Other
Mounting method Other
Number of contacts as normally open contact 1
Number of contacts as normally closed contact 0
Number of contacts as change-over contact 0
Control voltage 1 230-250 V
Type of control voltage 1 AC
Frequency control voltage 1 50-60 Hz
Control voltage 2 230-250 V
Type of control voltage 2 AC
Frequency control voltage 2 50-60 Hz
Rated switch current 10 A
Supply voltage 230-250 V
Voltage type (supply voltage) AC
Max. incandescent lamp load 2000 W
Max. load fluorescent lamp 1000 VA
Suitable for manual operation No
Width 46.5 mm
Height 50 mm
Depth 28.5 mm
Degree of impact strength (IK) IK02
Degree of protection (IP) IP20
Operating / setting temperature 5-35 °C
Storage temperature -5-60 °C
Electric supplying direction By the front of the product
Terminal marking indication Yes
Halogen free Yes
Connection type Push-in clamp , Cable
Terminals capacity 0.75-1.5 mm²
Label space/information surface No

Documentation

1 document
Instruction Use
292398-04.pdf pdf (0.63 Mo)
1 document
Catalogue Commercial Page
ex223001_0096.pdf pdf (0.28 Mo)
3 documents
Agreement
VDE-40026508 (0.68 Mo)
Agreement
Agreement
NF-NF012_4416 (0.53 Mo)
