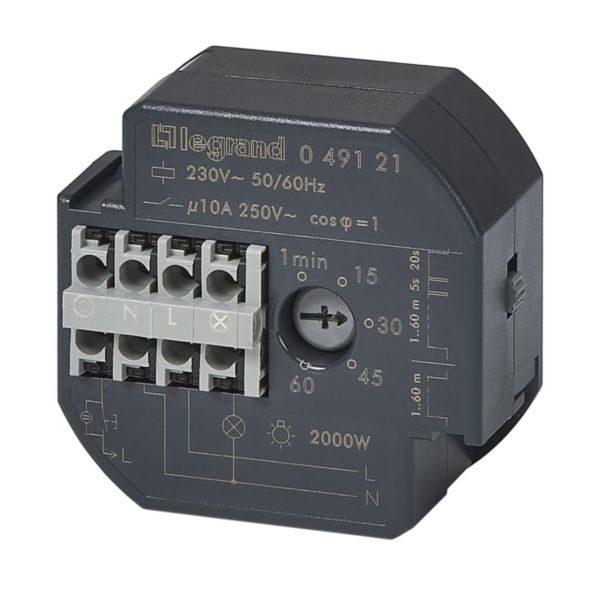

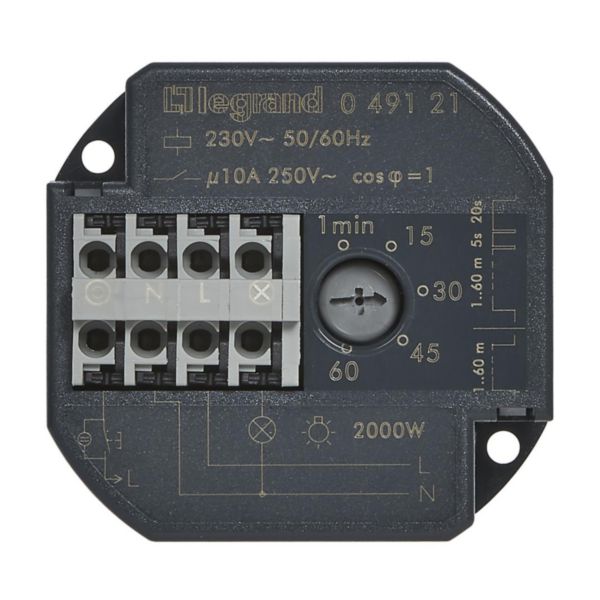

Single pole latching relay - silent - 10 A - surface-mounting - with timer

Name: Single pole latching relay - silent - 10 A - surface-mounting - with timer
SKU: 049121

CX³ LEGRAND

REF. 049121 EAN. 4010957491215

Compare You can only compare 4 products, you must remove 1 to add this one

Pulse operated latching relays CX³Surface mounting pulse operated latching relays - 10 A - 230 V~ - 50/60 Hz - Suitable for new installations or retrofitting of existing ones - Compatible with electronic ballasts and fluocompact lamps - Mounting on plate or in flush-mounting boxes Ø 67 mm - Equipped with automatic terminals for flexible or rigid wires (max. 2.5 mm ) - Power : min. 7 W / max. 2300 W - IP 20 - IK 04 - Dimensions : 49 x 46 x 26 mm - Maximum current when used with illuminated push - buttons : 50 mANoiseless - Single pole with timer - Enables energy savings by switching off lighting after a specified period - Time delay adjustment from 1 to 60 min. - Switch - off pre - warning function (can be disabled)

Function	Other
Mounting method	Other
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	0
Number of contacts as change-over contact	0
Control voltage 1 (Min-Max)	230-250 V
Type of control voltage 1	AC
Frequency control voltage 1 (Min-Max)	50-60 Hz
Control voltage 2 (Min-Max)	230-250 V
Type of control voltage 2	AC
Frequency control voltage 2 (Min-Max)	50-60 Hz
Rated switch current	10 A
Supply voltage (Min-Max)	230-250 V
Voltage type (supply voltage)	AC
Max. incandescent lamp load	2000 W

Max. load fluorescent lamp	1000 VA
Suitable for manual operation	No
Width	46.5 mm
Height	50 mm
Depth	28.5 mm
degree of impact strength (IK)	IK02
Degree of protection (IP)	IP20
Operating / setting temperature (Min-Max)	5-35 °C
Storage temperature (Min-Max)	-5-60 °C
Electric supplying direction	By the front of the product
Terminal marking indication	Yes
Halogen free	Yes
Connection type	Push-in clamp , Cable
Terminals capacity (Min-Max)	0.75-1.5 mm²
Label space/information surface	No
