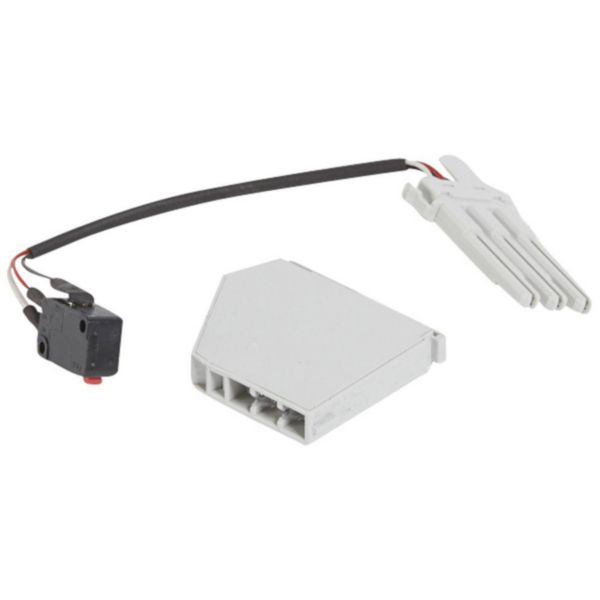

Signalling contact for auxilaries DMX³ 2500 and 4000

Name: Signalling contact for auxilaries DMX³ 2500 and 4000
SKU: 028816

LEGRAND

REF. 028816 EAN. 3245060288167

Compare You can only compare 4 products, you must remove 1 to add this one

Auxiliaries and Accessories for DMX³ 2500, 4000 and 6300
Control and signalling auxiliaries Signalling contact for auxiliaries - Signalling contact for shunt trips, Undervoltage releases and closing coils

Number of contacts as change-over contact	1
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0

Rated operation current Ie at AC-15, 230 V	16 A
Type of electric connection	Flat plug-in connection
Mounting method	Other

5 documents

Select all

Instruction Use

Y2921F.pdf pdf (10.2 Mo)

Workshop Book

Workshop Book: DMX-SP 2500 and DMX-SP 4000 pdf (41.85 Mo)

Workshop Book

Cahier d'atelier : DMX-SP 2500 et DMX-SP 4000 pdf (41.94 Mo)

Workshop Book

Cahier d'atelier : disjoncteurs ouverts DMX-SP pdf (137.59 Mo)

Workshop Book

Workshop specifications DMX-SP pdf (136.45 Mo)

2 documents

Select all

Catalogue Commercial Page

ex223001_0206.pdf pdf (0.11 Mo)

Catalogue Commercial Page

ex223001_0220.pdf pdf (0.11 Mo)
