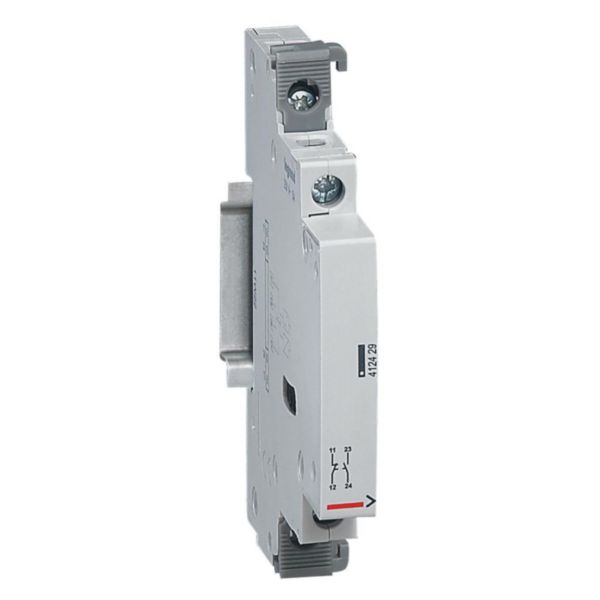

Name: Signalling auxiliary NO + NC for Legrand standard pulse operated latching relay or contactor CX³ - 250V~ - 5A
SKU: 412429

Signalling auxiliary NO + NC for Legrand standard pulse operated latching relay or contactor CX³ - 250V~ - 5A

CX³ LEGRAND

Signalling auxiliary NO + NC for Legrand standard pulse operated latching relay or contactor CX³ - 250V~ - 5A

REF. 412429 EAN. 3245064124294

Compare You can only compare 4 products, you must remove 1 to add this one

Easy mechanical association on the left side of the latching relay or contactor. No tools required.
Can fit a latching relay previously equipped with a control auxiliary
Very compact device : 0,5 module wide

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.

Device fitting	Auxiliary switch/relay
Function	Auxiliary switch
Width in number of modular spacings	0.5
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	1
Number of contacts as change-over contact	0
Number of fault-signal switches	0
Rated switch current	5 A

Rated voltage	250 V
Voltage type	AC
With auto test for earth leakage function	No
Suitable for max. number of poles main contact unit (total)	4
Suitable for max. current main contact unit	16 A
Width	9 mm
Height	84.5 mm
Depth	67 mm

Signalling auxiliary NO + NC for Legrand standard pulse operated latching relay or contactor CX³ - 250V~ - 5A
