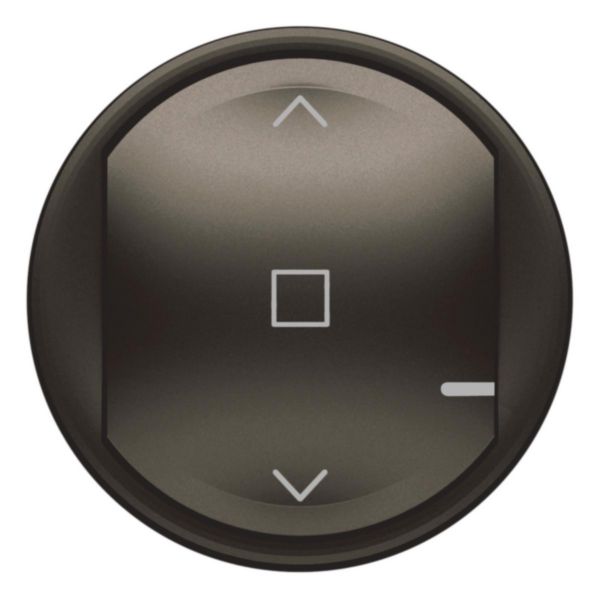

Shutter switch cover graphite

Name: Shutter switch cover graphite
SKU: 064839

Céliane™ Legrand

REF. 064839 EAN. 3414971014558

Compare You can only compare 4 products, you must remove 1 to add this one

Model	One-part button
Imprint/indication	Symbol "arrows"
Scannable symbol/barrier free	No
Utilization	Venetian blind
Suitable for touch sensor connector for bus system	Yes
Type of fastening	Engage (snap)
Monitoring window/light outlet	Yes
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Lacquered
Surface finishing	Matt

Antimicrobial treatment	No
Colour	Anthracite
With label area	No
With exchangeable lens/symbol	No
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Width	53 mm
Height	53 mm
Depth	7.5 mm
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-70 °C

5 documents

Select all

Agreement

OC / CB-FR_706877/A1 (0.73 Mo)

Agreement

Decl. UE RED-A 3761 C (0.22 Mo)

PEP

LGRP-01807-V01.01-FR.pdf pdf (0.85 Mo)

Agreement

Decl. UE RED-A 4080 D (0.44 Mo)

Agreement

OC / CB-HU-005160 (0.7 Mo)
